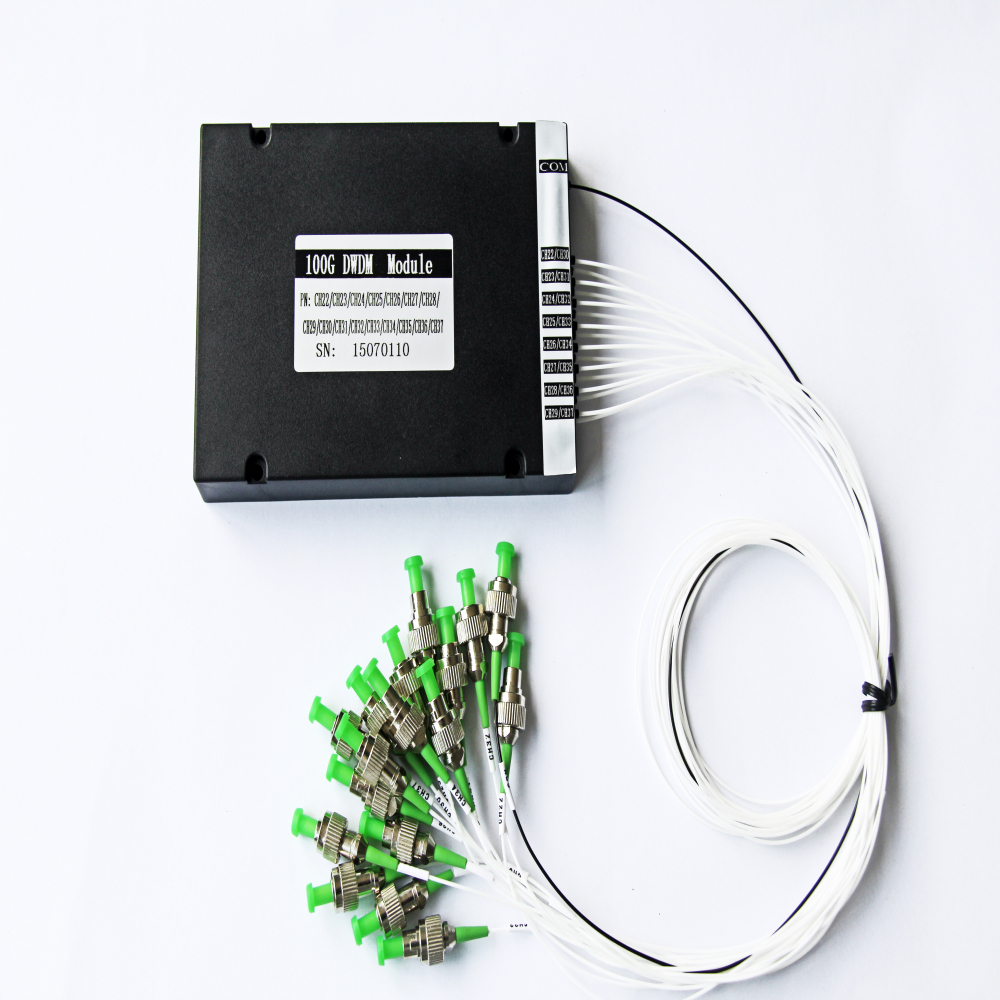

CWDM and DWDM module
CWDM and DWDM technologies provide an effective way to share one pair of fiber strands and put together various communications interfaces like: 10G, SONET OC-192, STM-64, Fiber Channel 1G/2G/4G, Gigabit Ethernet, OC3/OC12 or OC48 and E1/T1, just by using different wavelengths of light for each channel.
Our product range includes very affordable solutions for CWDM and DWDM technologies, with minimum or no management, but also carrier class professional solutions with complete management and monitoring functions, redundancy on fiber and power supplies and Telco grade specifications that can go up to 80 channels of DWDM 10G capacity on a single fiber circuit.
Our WDM Optical Mux products are flexible with a low-cost solution that enables the expansion of existing fiber capacity, and available with the Plastic ABS module cassette, 19″ Rack Mountable box and standard LGX packaging. No matter what kind of connectors, like FC, ST, SC, LC, etc., are all available, and we can also mix different connectors on one device.
Fetures
100GHz ITU Channel Spacing
Low insertion loss
broadband transmission
high channel isolation
High stability and reliability
Epoxy-free optical path
Applications
1.Channel Mux/Demux
2.DWDM system DWDM
3.Router
4. Fiber optical amplifier
5. CATV system
Specification
| Specification | Mux | Demux | |
| Channel Wavelength (nm) | 1530.33~1560.61（21~59 ITU grid） | ||
| Central Wavelength Accuracy (nm) | ± 0.5 | ||
| Min Channel Spacing (GHz) | 100 | ||
| Passband (@-0.5dB bandwidth)(nm) | >0.22 | ||
| Insertion Loss（dB) | Add/Drop Ch. | ≤1.0 | |
| Reflective Ch. | ≤0.4 | ||
| Passband Flatness（dB） | ≤0.3 | ||
| Add/Drop channel | Adjacent Channel | N/A | ≥25 |
| Isolation(dB) | Non-adjacent Channel | N/A | ≥35 |
| Reflective Isolation（dB) | ≥12 | ||
| Insertion Loss Temperature (dB/°C ) | ≤0.003 | ||
| Wavelength Temperature Shifting (nm/ °C ) | ≤0.002 | ||
| PDL (dB) | ≤0.1 | ||
| PMD (ps) | ≤0.1 | ||
| Directivity (dB) | ≥50 | ||
| Return Loss (dB) | ≥45 | ||
| Rated power (mW) | 500 | ||
| Operation Temperature (°C) | 0 ~ +70 | ||
| Storage Temperature (°C) | -40 ~ +85 | ||
| Dimension (mm) | L100×W80×H10 | ||
Ordering Information
| SDWDM | |
| Channel Spacing | 1=100GHz |
| Application Type | M=Mux |
| ITU channel ITU | C21=1560.61nm |
| 1=Bare Fiber | |
| Fiber diameter | 2=900um Loose tube |
| 3=3mm Cable | |
| Fiber Length | 1=1Meter |
| 2=2Meter | |
| Connector | 0=None |
| 1=FC/APC | |
| 2=FC/PC | |
| 3=SC/APC | |
| 4=SC/PC | |
| 5=ST | |
| 6=LC |
More Similar products, such as: 100GHz 16 channels, 200GHz 8 channels, 200GHz 16 channels DWDM,please visit our website!
