100GHz DWDM MUX/DEMUX Module

100G DWDM module are cascaded with 1×2 100G DWDM components. It features low insertion loss, high channel isolation, high stability and reliability, ITU channel optional and flexible.

Product detail

100GHz ITU channel

High channel isolation

Epoxy free on optical path

Ultra Stable and Highly Reliable

Parameters	Unit	Specification
Channel Number	—	4 Channel	8 Channel	16 Channel	32 Channel
Channel Wavelength	nm	ITU 100 GHz Grid
Center Wavelength Accuracy	nm	±0.1
Channel Spacing	GHz	100G
Channel Passband(@-0.5dB bandwidth)	nm	≥0.25
Insertion Loss	dB	≤2.0	≤3.7	≤5.5	≤6.5
Uniformity	dB	≤1.0
Ripple @ Passband	dB	≤1.0
Isolation @ Adjacent Channel	dB	≥25
Isolation @ Non-adjacent Channel	dB	≥45
Reflect Isolation	dB	≥12
Insertion Loss Temperature Sensitivity	dB/℃	≤0.005
Wavelength Temperature Shifting	nm/℃	≤0.002
Polarization Dependent Loss (PDL)	dB	≤0.1
Polarization Mode Dispersion (PMD)	ps	≤0.1
Directivity	dB	≥50
Return Loss	dB	≥45
Power handling(CW)	mW	≤300
Tensile Load	N	≤5
Operating Temperature	℃	-5 to +70
Storage Temperature	℃	-40 to +85

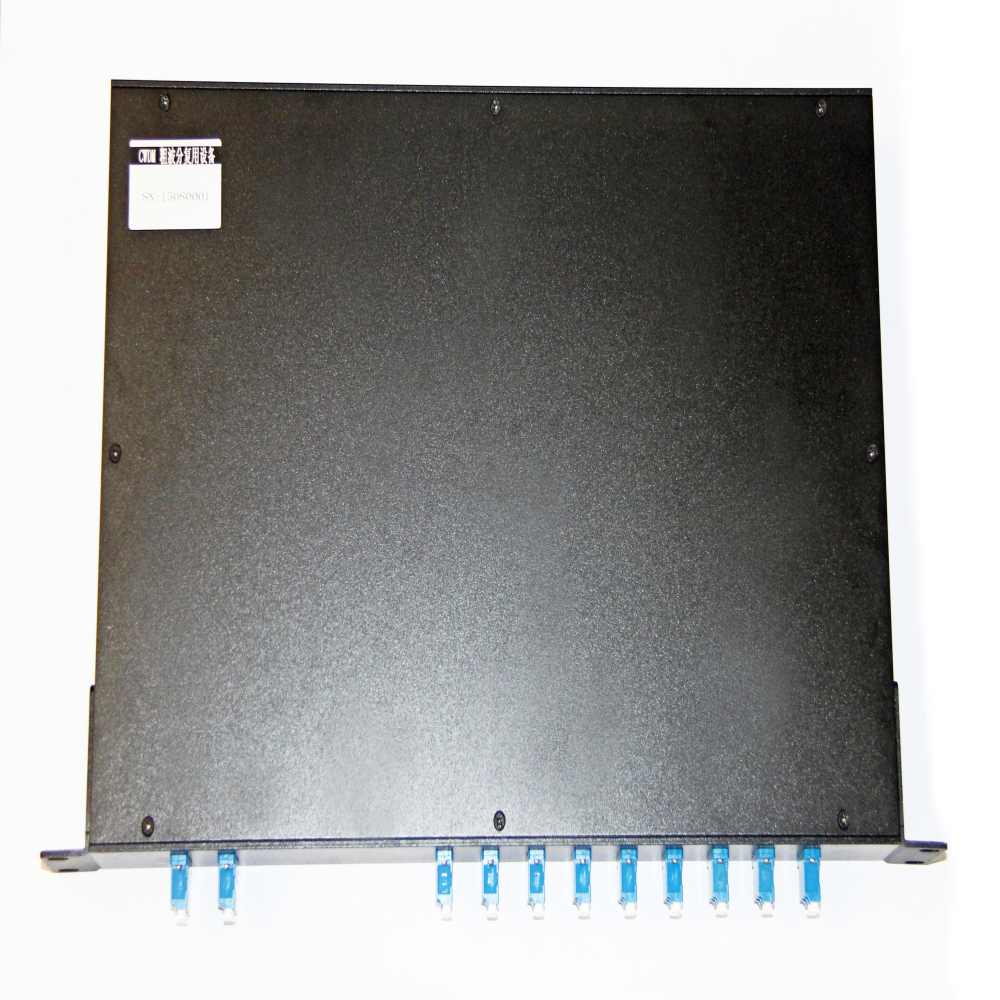

Package Dimension	mm	100x80x10(ABS) & 142 x102 x14.5(ABS) & LGX
		&19`inch Rack
