Description:

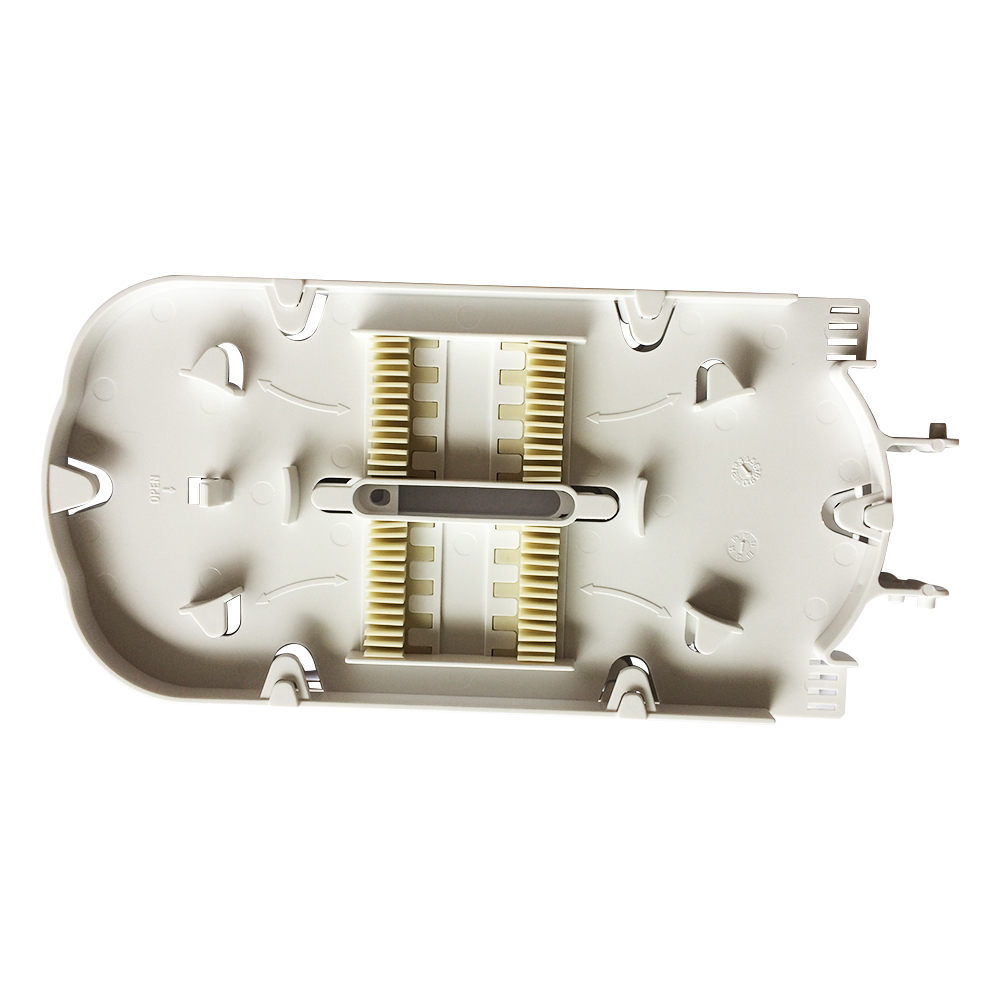

The splice tray is a box used to protect the bare fiber after fusion, also have function to accept a little redundant bare fiber, it mainly used to install inside fiber optic distribution frame, fiber optic splice closure. There are 4 cable ports in splice tray. It can lead in fiber through various angles . it’s adopt high strength engineering plastics injection moulds. It have flame retardant, intensity high, long time anti-aging and etc. features.

Fiber optic splice trays provide the function of protection, storage and splicing fibers. They allow fiber is installed in a guided and orderly, serving with the radius of curvature.

The splice tray is made of plastic and designed for easy and efficient access to its interior, as well as to perform multiple, rapid interventions (open and close the tray) without requiring the use of special tools.

The cover is easily assembled in the tray, in addition it provides protection to fiber stocks.

  005插图



Application:

Fiber optic distribution frame

FTTH terminal box

Fiber optic splice closures

Optical cabinet

Features:

FOST-005, there are 12pcs sleeve holes in splice tray,it can splice 12cores, also can splice 24cores max when put two sleeves in each hole. The cover and base fixed by metal pin , And the trays can be stackable. The inner splice tray cable management is reasonable, the fiber bending radius are over 30mm.

Size drawing(W 158mm×H 13.3mm×D 95.1mm)

005 图纸

Order information:

Model

Size L*W*H

Net Weight(g)

Remark

Splice tray FOST-005B

158*95.1*13.3mm

65g

Black(1 base + 1 cover)

Splice tray FOST-005W

158*95.1*13.3mm

65g

White(1 base + 1 cover)
