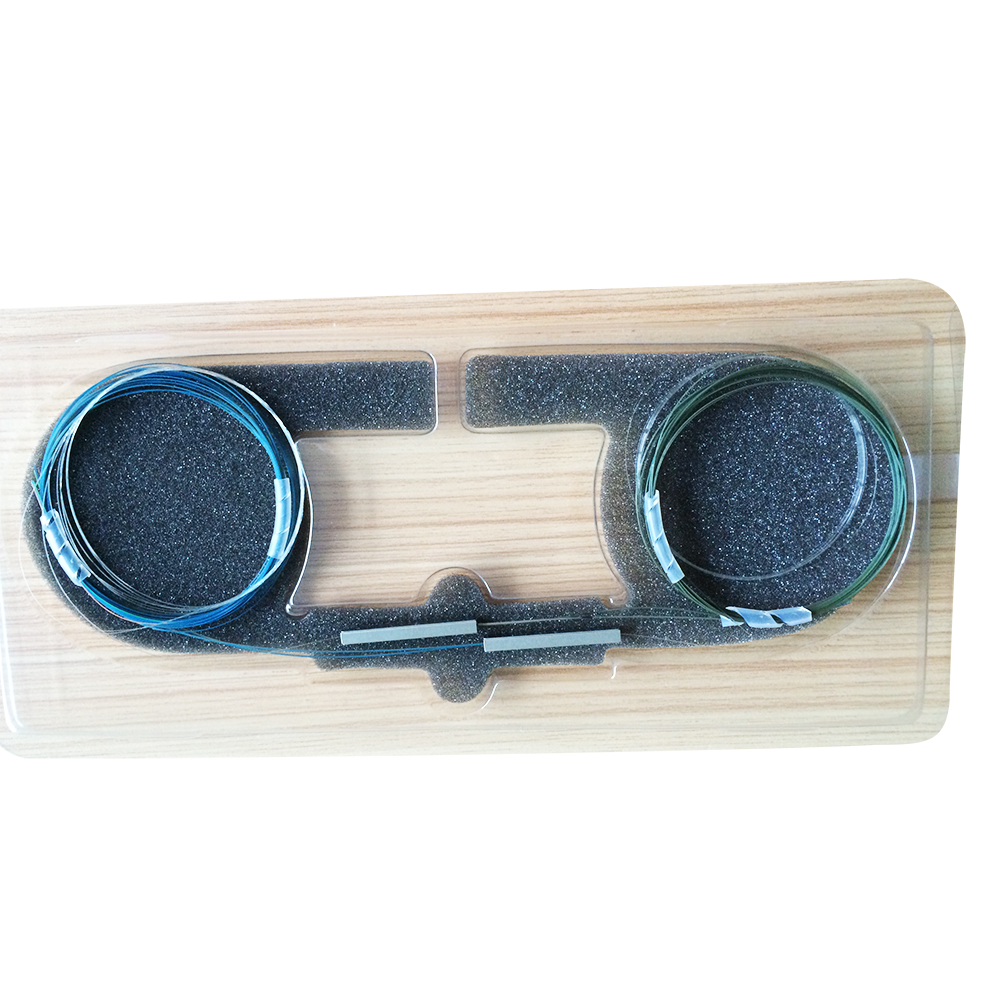

1*2 Way Micro Fiber Optic Plc Splitter NO Connectors both Side with Bare Fiber
PLC (Planar Lightwave Circuits) splitters are developed using silica glass waveguide circuits and aligned fiber pigtails, integrated inside a miniature package. PLC splitters provide low-cost solution for optical signal distribution, with small form factor and superb reliability.
The PLCs devices have 1×4, 1×8, 1×16 and 1×32,1×64 standard configurations, as well as customized structures of 2×4, 2×32, and 2×64. These products meet or exceed Telcordia GR-1209-CORE and GR-1221-CORE reliability qualification requirement.
Features:
Low insertion loss Various coupling ratio High return loss and excellent uniformity. Low Polarization dependent loss Environmental stable Operation wavelength: 1260nm to 1650nm Operating Temperature:-40℃ to 85℃
Application:
FTTx systems Optical LAN, Metro, WAN networks Passive optical networks CATV networks
Specification:
Table 1 – 1×N PLC optical splitter
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Operating wavelength (nm) |
1260～1650 |
|||||
|
Fiber type |
G657A or other request |
|||||
|
Insertion Loss (dB) (S/P) |
4.0/3.8 |
7.3/7.0 |
10.5/10.2 |
13.7/13.5 |
16.9/16.5 |
21.0/20.5 |
|
Uniformity (Max.,dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
|
Return Loss(dB) (S/P) |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
|
Polarization dependent loss (dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
| Wavelength Dependent Loss
(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
| Temperature stability(-40～85 ℃)(dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (℃) |
-40～85 |
|||||
| Storage temperature(℃) |
-40～85 |
|||||
| Device package size
(mm) (L×W×H) |
40×4×4 |
40×4×4 |
40×4×4 |
50×4×4 |
50×7×4 |
60×12×4 |
| Module Box Dimensions
(mm) (L×W×H) |
100×80×10 |
100×80×10 |
100×80×10 |
120×80×18 |
140×115×18 |
140×115×18 |
| Micro Module Size
(mm) (L×W×H) |
60×7×4 |
60×7×4 |
60×7×4 |
60×12×4 |
80×20×6 |
N/A |
Table 2 – 2×N PLC Optical Splitter
|
Parameter |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
|
Operating wavelength (nm) |
1260～1650 |
||||
|
Fiber type |
G657A or other request |
||||
|
Insertion Loss (dB)(S/P) |
4.2 |
7.6 |
11.0 |
14.5 |
17.5 |
|
Uniformity (Max.,dB) |
0.8 |
1.5 |
1.5 |
2.0 |
2.5 |
|
Return loss(dB) (S/P) |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
|
Polarization dependent loss (dB) |
0.2 |
0.2 |
0.3 |
0.4 |
0.4 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
| Wavelength Dependent Loss
(dB) |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Temperature stability (-40～85 ℃)(dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (℃) |
-40～85 |
||||
|
Storage temperature (℃) |
-40～85 |
||||
| Device package size
(mm) (L×W×H) |
40×4×4 |
50×4×4 |
50×4×4 |
50×7×4 |
60×7×4 |
| Module Box Dimensions
(mm) (L×W×H) |
100×80×10 |
100×80×10 |
100×80×10 |
120×80×18 |
140×115×18 |
| Micro Module Size
(mm) (L×W×H) |
60×7×4 |
60×7×4 |
60×7×4 |
60×12×4 |
80×20×6 |
Note:
1． Specification without fiber optic connectors;
2． Each connector will add loss 0.2dB.
Outside dimension
PLC device
PLC – Planar Lightwave Circuit Splitter Advantages
Suitable for multiple operating wavelengths (1260nm – 1650nm); unstinted. Equal splitter ratios for all branches. Compact configuration; smaller size; small occupation space. Good stability across all ratios. High quality; low failure rate.
FBT – Fused Biconical Splitter Advantages
The product is well-known and is easy to produce, thus reducing cost of production. Splitter ratios can be customized. Can work on three different operating bands (850nm, 131 Onm, and 1550nm).
Company and Products advantages:
- 1.The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
2.Good supply capacity(20K-30K pieces connectors each day)
3.Fast delivery time(1-3days)
4.Complied to ISO9001 quality system
5.100% testing before shipment
6.3D passed testing with report for option
7.All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA9,E2000 and so on)
