Duplex 3m Multimode 50/125 OM3 Duplex Lc Fiber Patch Cord Aqua cable

Product Introduction of Duplex 3m Multimode 50/125 OM3 Duplex Lc Fiber Patch Cord Aqua cable

10G-Link fiber offers a variety of OM3 multimode fiber patch cables with connector types that range from LC, SC, ST and MTP. 10G-Link fiber provides fiber patch cords suitable for high-speed bandwidths, including OM3 patch cord 50/125, which are optimal for 10Gb network applications. Multi-mode fiber optic patch cords are known as 50/125. This indicates that the interior of the cable, is a glass or plastic core with a diameter of 50 microns. The 125 indicates the outer cladding layer of micron. Boot style are available in standard, duplex and uniboot, and fiber cables come in aqua. Common connectors are LC-LC, SC-SC, ST-ST and MTP-MTP. Our 50 125 fiber cablecan support 10 Gigabit Ethernet.

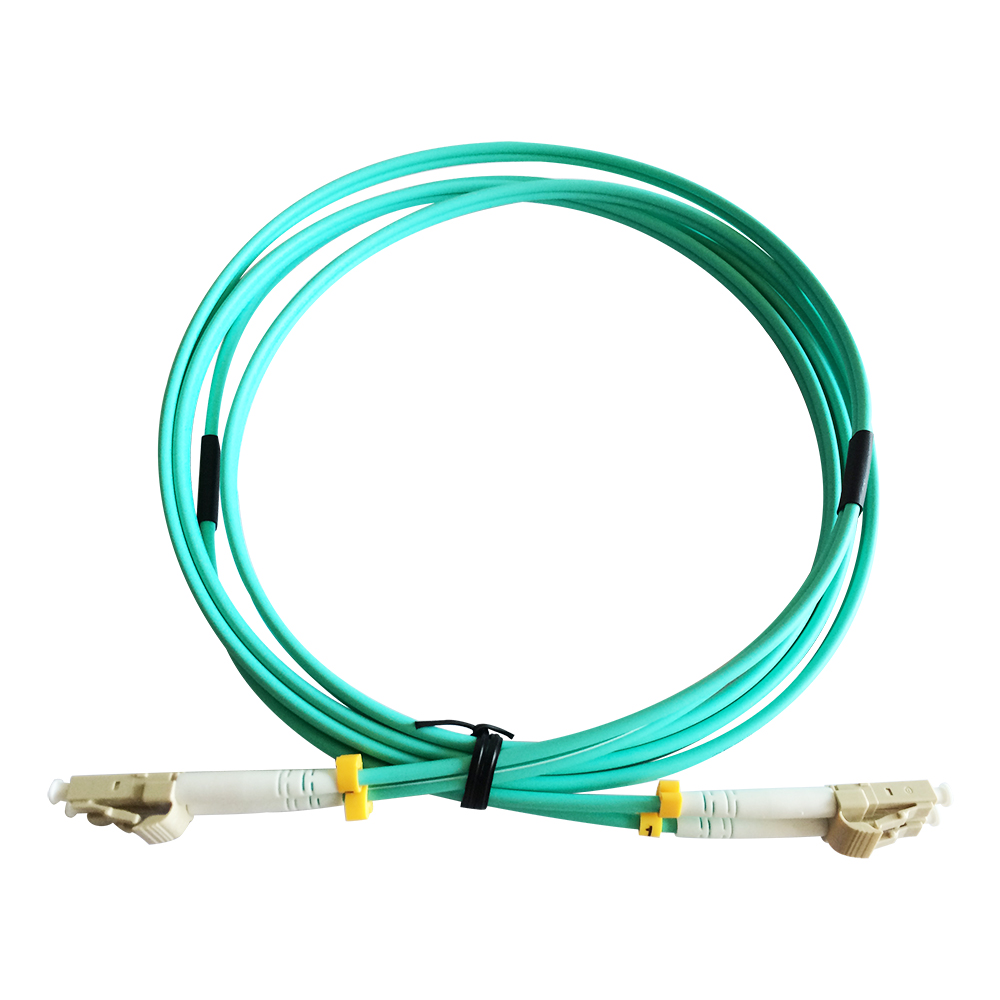

10G-Link fiber offers an LC 3 meter fiber optic patch cord. The 50 micron LC-LC patch cable is constructed with Corning®  OM3 glass in AB to BA polarity to support laser optimized multimode fiber LOMMF and high speed 10G cabling networks. The LC to LC fiber optical cord is OM3 50/125 Duplex Fiber Cable. The aqua jacket material around the OM3 50 125 multimode fiber optic cable is a polyolefin halogen free flame retardant compound for OFNR safety rating. It is colored aqua to signify the fiber optic jumper cable is suitable for 10Gb networking. The LC patch cord is assembled with LC connectors for a high density data center environment. This breakout cable can reduce bulk fiber optic cabling by 50% with a 2mm duplex fiber cable. Each assembly is 100% factory tested to meet Bellcore GR-326 and TIA/EIA standard with a maximum insertion loss at 0.2dB. The data center grade duplex multimode lc connector meets EIA/TIA 604-2 standards with ceramic ferrule. The ferrule on the end of the multimode fiber cable is pre-polished for a consequently consistent performance. Operating temperature for this OM3 fiber is -20C to +70C and minimum bend radius is 1.18in. 10G-Link fiber LC patch cable is RoHS compliant and complies with industry standards. Each fiber optic patch cord is factory built and tested. Test reports are included.

IMG_6020

Company Introduction

Our MM fiber patch cord works well alongside a cassette rack or a fiber termination box if you are looking to buy fiber optic cable or other fiber optic tools. Our fiber optic patch cords are ideal to work with a fiber junction box and a fiberoptic termination box. Buy fiber cables direct from 10G-Link fiber, a reliable fiberoptic supplier and a dependable fiber optics for sale co. We manufacture fiber optic cables for enterprise data centers, colocation facilities, server farms, cloud storage networks, telecommunication rooms, and any place fiber jumper cables are needed. 10G-Link fiber stocks thousands of products; such as: a fiber optic box, a fiber optic junction box, fiber patch cables, fiber optic jumpers, and fiber optic jumper cables. Our selection of fiber optic cable for sale includes a wide variety of fiber connector types, bare fiber optic cable and bulk fiber optic cable. Searching for a fiber optic terminal box or some fiber jumpers? Your search for fiber optic patch cables, or other types of fiber optic for sale, is over because 10G-Link fiber is here! Go to fiber optic cable shop, 10G-Link fiber, to view fiber for sale and our fiber optic cable price.

尺寸Patch cord 车间拼图

Product Specification (Parameter)

Connector LC to LC Jacket OD 2.0mm,3.0mm,1.6mm,2.4mm
Fiber Mode 50/125μm Jacket Color Aqua
Polish UPC to UPC Wavelength 850/1300nm
Fiber Type Duplex Jacket Material LSZH
Insertion loss ≤0.3dB Interchangeability ≤0.2dB
Return loss ≥35dB Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C
Polarity A(Tx) to B(Rx) Fiber Grade G.651

Performance
10 Gigabit Ethernet: up to 33 meters at 850nm, up to 300 meters at 1300nm
1 Gigabit Ethernet: up to 275 meters at 850nm, up to 550 meters at 1300nm
100 Megabit Ethernet: up to 2,000 meters at 850nm
Insertion Loss: <0.25dB
Return Loss: ±0.35dB
Durability: >500 Matings
Operating Temperature: -20°C to 70°C (-4°F to 158°F)

Product Application of Fiber Optic Patch Cables

Patch cables are used for connections to CATV (Cable Television), telecommunication networks, computer fiber networks and fiber test equipment. Applications include communication rooms, FTTH (Fiber to The Home), LAN (Local Area Network),FOS (fiber optic sensor), Fiber Optic Communication System, Optical fiber connected and transmitted equipment, Defense combat readiness, etc.

  1. Gigabit Ethernet
  2. Computer fiber networks
  3. Fiber test equipment
  4. Communication rooms
  5. Fiber Optic Communication System
  6. Optical fiber connected and transmitted equipment
  7. Defense combat readiness
  8. Active device termination
  9. Telecommunication networks
  10. Video and Multimedia
  11. Premise installations
  12. LAN(Local area networks)
  13. FTTH  (Fiber to The Home) and FTTX applications
  14. CATV (Cable Television)
  15. FOS (fiber optic sensor)

光纤跳线应用插图

Product Features of Fiber Optic Patch Cords

·Low insertion loss ≤0.3dB;
·High return loss,Multimode UPC≥35dB
·Good repeatability;
·Good interchange;
·Excellent environmental adaptability;
·Precise connector
·Excellent mechanical capability
·Fiber optic connector accord with ISO9001,ROHS,CE

Company and Products advantages:

1.The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
2.Good supply capacity(20K-30K pieces connectors each day)
3.Fast delivery time(1-3days)
4.Complied to ISO9001 quality system
5.100% testing before shipment
6.3D passed testing with report for option
7.All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA9 and so on)
