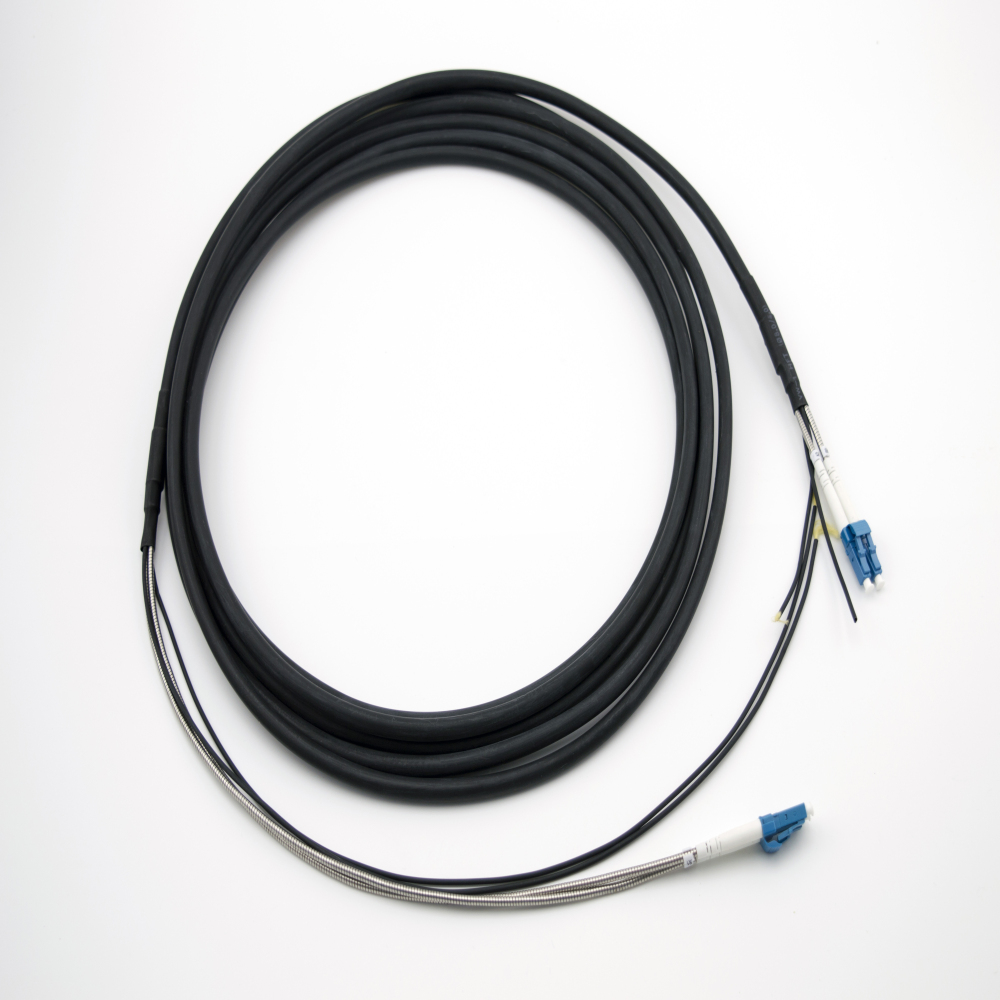

Factory Supply 7mm Cpri Ftta GYFJH Outdoor Cable Fiber Optic Patch Cord
10G-Link supplies FTTA(Fiber to the Antenna) DLC (Dual LC Connctor) SM GYFJH 2G.657A patch cord for TD-SCDMA,WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. These products are good for CPRI application. Our BBU/RRU Patch Cords include:
1. Dual LC Conector Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm, Outdoor Protected Branch Cable Length = 10m, 20m…xxxM, A end (RRU) with PDL cover.
2. Dual LC Conector Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm Outdoor Protected Branch Cable Length(Without armored type) = 10m, 20m…xxxM
3. Dual LC Conector Singlemode 9/125um (Multimode 62.5/125, 50/125), GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm, Outdoor Protected Branch Cable (armored TYPE) Length= 10m, 20m…xxxM.
Features:
- Standard Duplex LC connector, well connected with standard LC adaptor
- Wall seal design,easy operation, strong and durable.
- Broad temperature range and wide range of indoor and outdoor cables
- Easy Operation, reliable and cost-effective Installation
- IP67 protection, salt-mist proof, humidity proof, dust proof
- Light weight,waterproof, dustproof, moistureproof , Metal hard housing.
Applications:
Mainly used in wireless base station horizontal and vertical cabling
- Widely used in FTTA & FTTH
- Used for 3G 4G base station
- BBU(Base Band Unit), RRU(Radio Remote Unit), RRH, LTE
1.Single mode fiber
|
Item |
Unit |
Specification |
|
Attenuation |
dB/km |
1310nm≤0.4 1550nm≤0.3 |
|
Dispersion |
Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
|
Zero dispersion wavelength |
Nm |
1300~1324 |
|
Zero dispersion slope |
Ps/nm.km |
≤0.095 |
|
Fiber cutoff wavelength |
Nm |
≤1260 |
|
Mode field diameter |
Um |
9.2±0.5 |
|
Mode field concentricity |
Um |
<=0.8 |
|
Cladding diameter |
um |
125±1.0 |
|
Cladding non-circularity |
% |
≤1.0 |
|
Coating/cladding concentricity error |
Um |
≤12.5 |
|
Coating diameter |
um |
245±10 |
|
bending, dependence induced attenuation |
1550nm, 1turns,32mm diameter 100rums,60mm diameter |
≤0.5 db |
|
Proof test |
kpsi |
≥100 |
2.Multi mode fiber
|
Item |
Unit |
Specification |
|
|
Attenuation |
dB/km |
850 nm≤3.5 1300 nm≤1.5 |
|
|
Bandwidth |
MHz·㎞ |
50/125um |
62.5/125 um |
|
850 nm≥200 |
850 nm≥160 |
||
|
1300 nm≥200 |
1300 nm≥200 |
||
|
Cladding diameter |
um |
125±1.0 |
|
|
Cladding non-circularity |
% |
≤1.0 |
|
|
Coating/cladding concentricity error |
Um |
≤12.5 |
|
|
Coating diameter |
um |
245±10 |
|
|
bending, dependence induced attenuation |
850nm,1300nm 100turns,75mm diameter |
≤0.5 at 850 nm\1300 nm |
|
|
Proof test |
kpsi |
≥100 |
|
3.Connector Specification
|
ITEM |
PARAMETER |
|
|
Connector type |
LC/UPC, SC/UPC, FC/UPC, ST/UPC. |
LC/APC, SC/APC, FC/APC, ST/APC |
|
Insertion Loss |
<=0.2db |
<=0.3db |
|
Return Loss |
>=50db |
>=60db |
|
Fiber mode |
Single-mode/ Multi-mode, G.657A |
|
|
Operating wavelength |
1310, 1550nm |
|
|
Test wavelength |
1310,1550nm |
|
|
Repeatability |
<=0.1 |
|
|
Interchangeability |
<=0.2dB |
|
|
Durability |
<=0.2dB |
|
|
Fiber Length |
1m, 2m….. any length optional. |
|
|
Length and tolerance |
10cm |
|
|
Operating Temperature |
-40C ~ +85C |
|
|
Storage Temperature |
-40C ~ +85C |
|
Packaging Roll :
Company and Products advantages:
1.The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
2.Good supply capacity(20K-30K pieces connectors each day)
3.Fast delivery time(1-3days)
4.Complied to ISO9001 quality system
5.100% testing before shipment
6.3D passed testing with report for option
7.All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA9,E2000 and so on)
Payment and Shipping Terms
ESTIMATED LEAD TIMES: 1-2 business days (or possibly more depending on quantity).
Payment terms: MoneyGram ,Western Union,L/C,TT
Shipping terms:By air, by sea,by express( DHL,Fedex,TNT,UPS,EMS)
