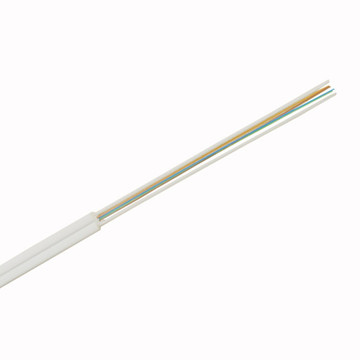

Outdoor 1-6 Core FTTH Fiber Drop Cable
Description:
Bow Type Drop Cable Structure: optical fiber(s) is placed between two steel wire strength members, with self-supporting steel wire strength component, low smoke, non-halogen flame retardant outer sheath material.we supply 1 -6 core FTTH fiber optic cable.
FTTH Outdoor Cable
FTTH Indoor Cable
1. GJYXCH Bow Type Drop Cable adopts the slight bending resistant fiber B6, ensure data transmission.
2. Small size, light weight, simple structure, easy to strip for its special groove design and no need any tool, easy to install.
3. Two parallel phosphated steel wires as strength member have excellent crush and tensile resistance.
4. Self-supporting steel wire strength component withstand most part of tension.
5. Low smoke, non-halogen flame retardant outer sheath material.
| Cable Type | FTTH Drop Cable | Fiber Count | 1-6 Fiber |
| Construction | Self-supporting | Fiber Type | Singlemode G.657A |
| Outer Jacket Material | LSZH (Black/White) | Strength Member Material | Metal |
| Cable Diameter | (2.0±0.2)×(5.0±0.2)mm | Cable Weight | 20kg/km |
| Tensile Strength (long/short term) | 100/200N | Crush Load (long/short term) | 300/1000 (N/100mm) |
| Bending Radius (long/short term) | 10D/20D (mm) | Operating/Storage Temperature | -40 to +60°C |
Performance Indicators:
1. GJYXCH FTTH Fiber Optical Cable is applicable as drop cable access to FTTH, FTTO, FTTB networks, etc.
2. Laying Way: Overhead, Pipeline.
3. Operating Temperature: -20～+ 50℃.
Note:
1. Cables can be supplied with a range of single mode or multimode fibers.
2. The dimensions and raw materials can be designed according to the demand of the customers.
3. Standard Reel Length: 2000m/reel: other lengths available on request.
| Cable Type | Cable Diamter (mm) | Weight (kg/km) | Tensile strength(N) | Crush Resistance(N/100mm) | Minimum bending radius (mm) | |||
| Short-term | Long-term | Short-term | Long-term | Static | Dynamic | |||
| GJXFH-1 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJXFH-2 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJXFH-4 | 2.0*5.6 | 21.5 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJXH-1 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJXH-2 | 2.0*5.0 | 21 | 60 | 30 | 1000 | 300 | 15 | 30 |
| GJXH-4 | 2.0*5.6 | 21.5 | 60 | 30 | 1000 | 300 | 15 | 30 |
Indoor Cable
| Fiber Counts | Cable Diameter | Weight (kg) | Tensile Strength | Crush Resistance | Bending Radius |
| (mm) | Long/Short | Long/Short Term | Static/Dynamic | ||
| Term(N) | (N/100mm) | (mm) | |||
| GJXFH-1 | 2.0*3.0 | 8 | 60/30 | 1000/300 | 15/30 |
| GJXFH-2 | 2.0*3.0 | 28.5 | 60/30 | 1000/300 | 15/30 |
| GJXFH-4 | 2.0*4.0 | 10 | 60/30 | 1000/300 | 15/30 |
| GJXH-1 | 2.0*3.0 | 9 | 60/30 | 1000/300 | 15/30 |
| GJXH-2 | 2.0*3.0 | 9.5 | 60/30 | 1000/300 | 15/30 |
| GJXH-4 | 2.0*4.0 | 10 | 60/30 | 1000/300 | 15/30 |
