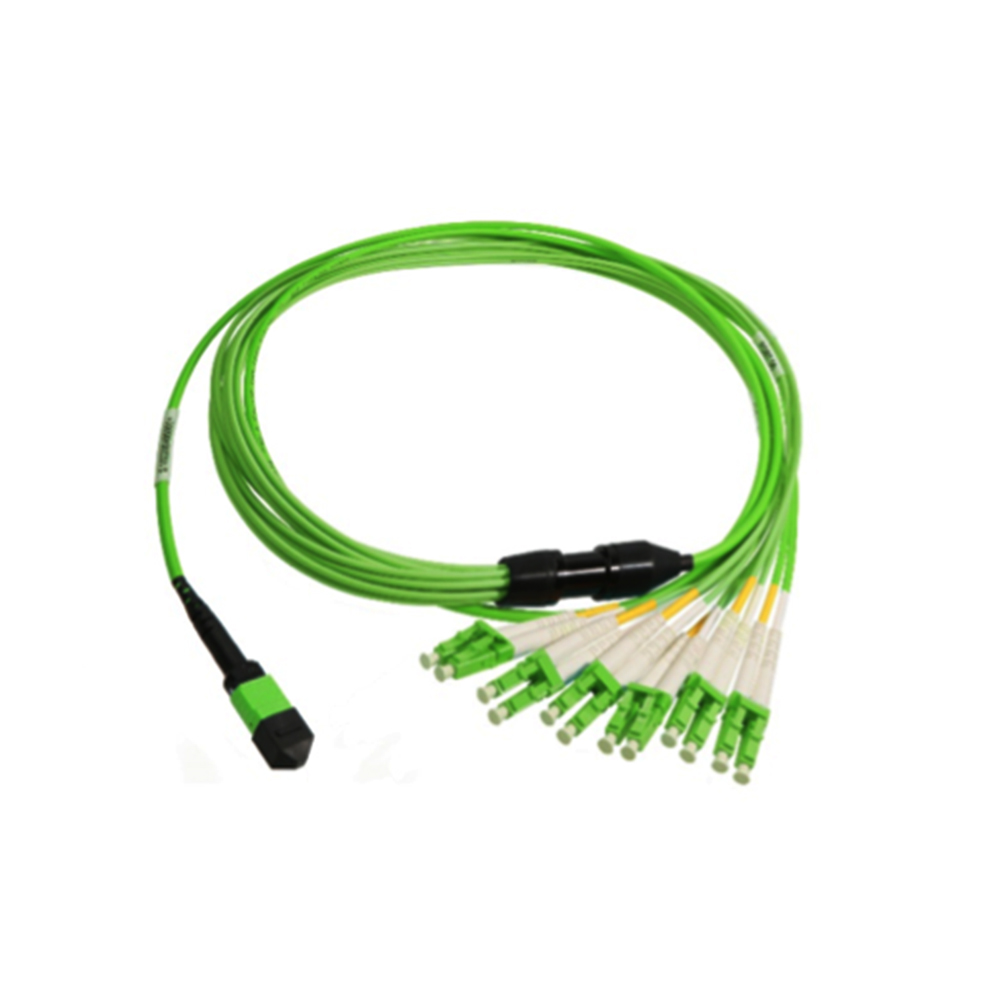

High Density OM5 Mtp Fanout Patch Cable

MPO Female to LC 8Fiber,12Fiber,24Fibers SM MPO Patch Cord

MTP/MPO fiber patch cables allow high-density connections between network equipment in telecommunication rooms and data centers.MPO Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With Senko MPO connectors and Corning Clearcurve fiber, it is optimized for 10/40/100G high-density data center applications.

Q[G_L$V01F4]@[C1]1MHLVX

Product Specifications

Connector A MPO Female (pinless) Connector B LC
Fiber Mode MM 50/125μm Wavelength 850/1300nm
40/100G Ethernet Distance 100m at 850nm 10G Ethernet Distance 300m at 850nm
Glass Fiber Corning ClearCurve® RoHS Compliancy Status Compliant
MPO Connector IL 0.35dB Max(0.15dB Typ.) LC Connector IL ≤0.2dB
MPO Connector RL ≥30dB LC Connector RL ≥30dB
Attenuation at 850nm ≤2.3dB/km Attenuation at 1300nm ≤0.6dB/km
Cable Jacket LSZH Fiber Count 8,12,24 Fibers
Jacket OD 3.0mm Fan-Out Diameter 2.0mm
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Operating Temperature -10°C to +70°C Storage Temperature -40°C to +85°C

Features

MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections
Push/Pull tab connectors offer maximum accessibility in high density installations; install remove with one hand
12 times the density of SC style connectors
High Density design cuts down on installation costs
50/125 OM4 Rated Multimode Fiber, 850nm
Plenum rated jacket
Unique cable ID label for Quality Control and Traceability
Each cable 100% tested for low insertion loss and back reflection
Test data supplied with each cable
Custom lengths available

Application
Telecom system
Cabling system
High Density optical laser
QSFP devices

 MPO 插图









High-precision Ceramic ferrule, which is easy to weld, ensures small optical loss and stable transmission.









MPO 分解图







Full automatic Standardized production to reduce manual intervention, the insertion loss is less 0.3dB. Good Repeatability, the usage count is more than 1,000 times.











MPO 8芯 12芯 布线图









              3 Cable method -Polarity A,PolarityB,Polarity



MPO 布线图



Company and Products advantages:

1.The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
2.Good supply capacity(20K-30K pieces connectors each day)
3.Fast delivery time(1-3days)
4.Complied to ISO9001 quality system
5.100% testing before shipment
6.3D passed testing with report for option
7.All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA9 and so on)
