Product description

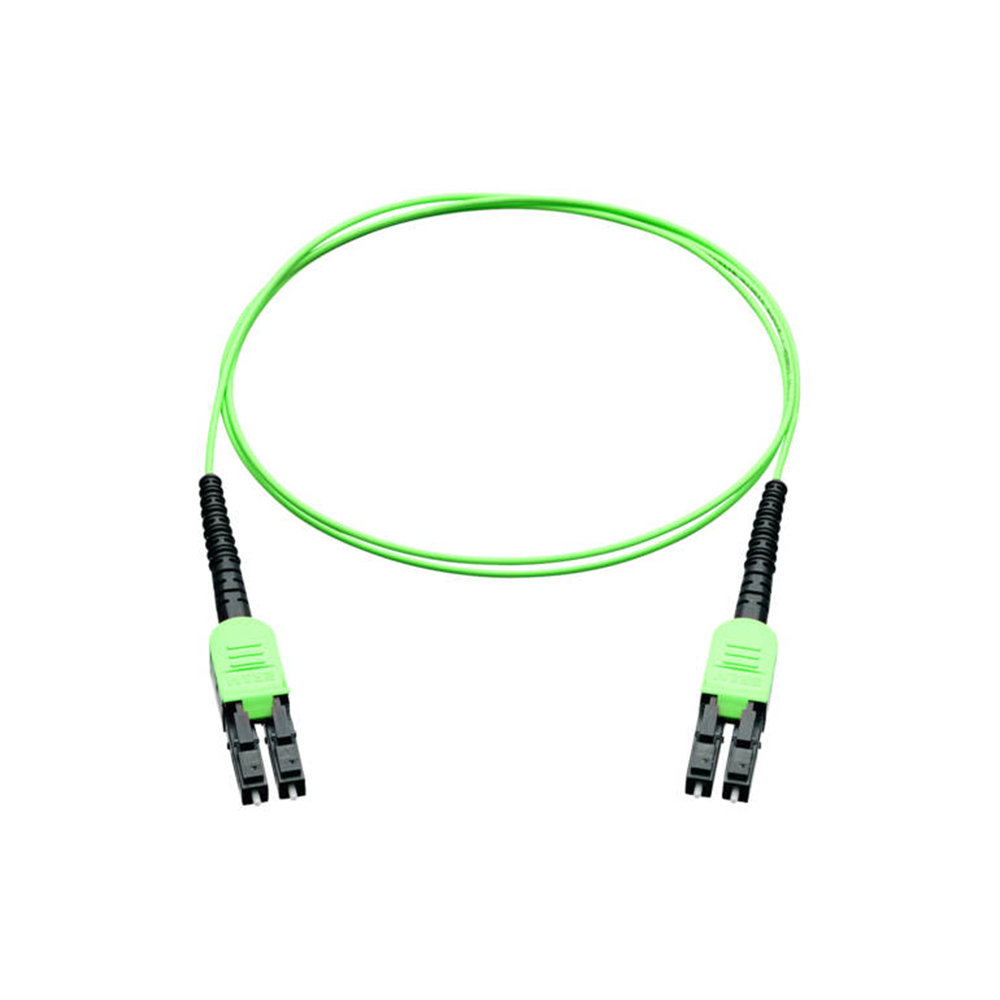

LC-LC Multimode Duplex 50/125 OM5 100 Gigabit Fiber Optic Cable LC Uniboot Push-Pull Tab
Our Premium Multimode OM5 100 Gigabit fiber cables come in 3 connector types – Standard, Uniboot, and Uniboot Push-Pull Tab.The standard Multimode OM5 100 Gigabit premium cables come with a unibody, short boot connector to provide you with the normal fiber cable experience with a high-quality performance, as well as the ability to reverse polarity when needed.
Our OM5 100 Gigabit uniboot / unibody high-density fiber optic cables have two fibers carried through a single jacket with a low profile boot, reducing the size and surface area of the cables. The Multimode uniboot fiber cables are easy to use and make cable management simple since you are dealing less cabling. The smaller “short boot” connector on our premium fiber cables makes it easy to reverse the polarity of the cables when needed.
The push-pull tab connector / boot on our Multimode OM5 high-density fiber optic cables have a special tab that will allow easy insertion and removal of the connector without the need to access the boot or connector. The slim, low profile uniboot design allows this high-density installation cabling to be used with minimal cable management and save space in your network setup. These fiber cables have the same type of short boot connector as the regular uniboot/unibody cables, but with the push-pull tab, still allowing you to reverse the polarity when needed.
Product Specification
|
CONNECTOR SPECIFICATION |
|||
| OPTICAL PERFORMANCE- STANDARD | SINGLE MODE | MULTIMODE | CONFORMANCE |
| Insertion loss (MAX/MASTER) | 0.25 dB | 0.25 dB | IEC 61300-3-4 |
| Ave/Master | 0.18 dB | 0.15 dB | IEC 61300-3-4 |
| Ave/Random | 0.18 dB | 0.20 dB | IEC 61300-3-34 |
|
CONNECTOR SPECIFICATION |
|||
| OPTICAL PERFORMANCE- LOW LOSS PREMIUM | SINGLE MODE | MULTIMODE | CONFORMANCE |
| Insertion loss (MAX/MASTER) | 0.15 dB | 0.15 dB | IEC 61300-3-4 |
| Ave/Master | 0.12 dB | 0.08 dB | IEC 61300-3-4 |
| Ave/Random | 0.12 dB | 0.10 dB | IEC 61300-3-34 |
|
CABLE SPECIFICATION |
|||
| CHARACTERISTICS | UNITS | 3 mm ROUND DUPLEX | 2.4 mm ROUND DUPLEX |
| Cable Material | LSZH | LSZH | |
| Strength Member | Aramid | Aramid | |
| Crush | N/100 mm | 1000 | 1000 |
| Operating Temperature | °C | -20 to 60 | -20 to 60 |
| Secondary Buffer Diameter | µm | 900 ± 50 | 600 ± 50 |
| Minimum Bending Radius | mm | 10D (installed) 20D (loaded) | 10D (installed) 20D (loaded) |
Product Application of OM5 100 Gigabit LC Uniboot Push-Pull Tab Fiber Optic Patch Cables
As the networking environment of today becomes increasingly dependent on high speed and high density solutions, effective cable management is a real issue. The key concern is how to manage more cables in a smaller amount of space.LC Uniboot fibre patchcord reduces cable management space comparing to standard patchcords. The patchcord utilises a special round duplex cable that allows duplex transmission within a single 1.6mm, 2.0mm, 2.4mm or 3.0mm cable. As a result of these features our uniboot patch cord offers improved airflow and visibility of equipment within a high density network environment.
- Gigabit Ethernet
- Computer fiber networks
- Fiber test equipment
- Communication rooms
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment
- Defense combat readiness
- Active device termination
- Telecommunication networks
- Video and Multimedia
- Premise installations
- LAN(Local area networks)
- FTTH (Fiber to The Home) and FTTX applications
- CATV (Cable Television)
- FOS (fiber optic sensor)
LC Uniboot patchcords features
The LC Duplex Switchable connector’s unique design allows the use of round style 1.6mm, 2.0mm, 2.4mm or 3.0mm jacketed cable instead of the traditional zipcord duplex cable for a more compact design. -uniboot connector aids cable management -compact, pull-proof design -thin, very flexible fibre-optic patch cable (round cable Ø 1.6 mm , Ø 2.0 mm , Ø 2.4 mm or Ø 3.0 mm) with 2 fibres -available fiber OS2, OM2, OM3 and OM4 -LSOH coating -different lengths and colour available -sticker labelling at both cable ends (optional) -polarisation version A, B -switchable Connector to change polarity -NEW- Latch Lock -mini boot, Flex angle boot available -Right Angle Clip for better panel management -Red / Black color indication for easy Polarity Check
Company and Products advantages:
1.The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
2.Good supply capacity(20K-30K pieces connectors each day)
3.Fast delivery time(1-3days)
4.Complied to ISO9001 quality system
5.100% testing before shipment
6.3D passed testing with report for option
7.All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA9 and so on
