SCUPC Field Assembly Connector,Multimode

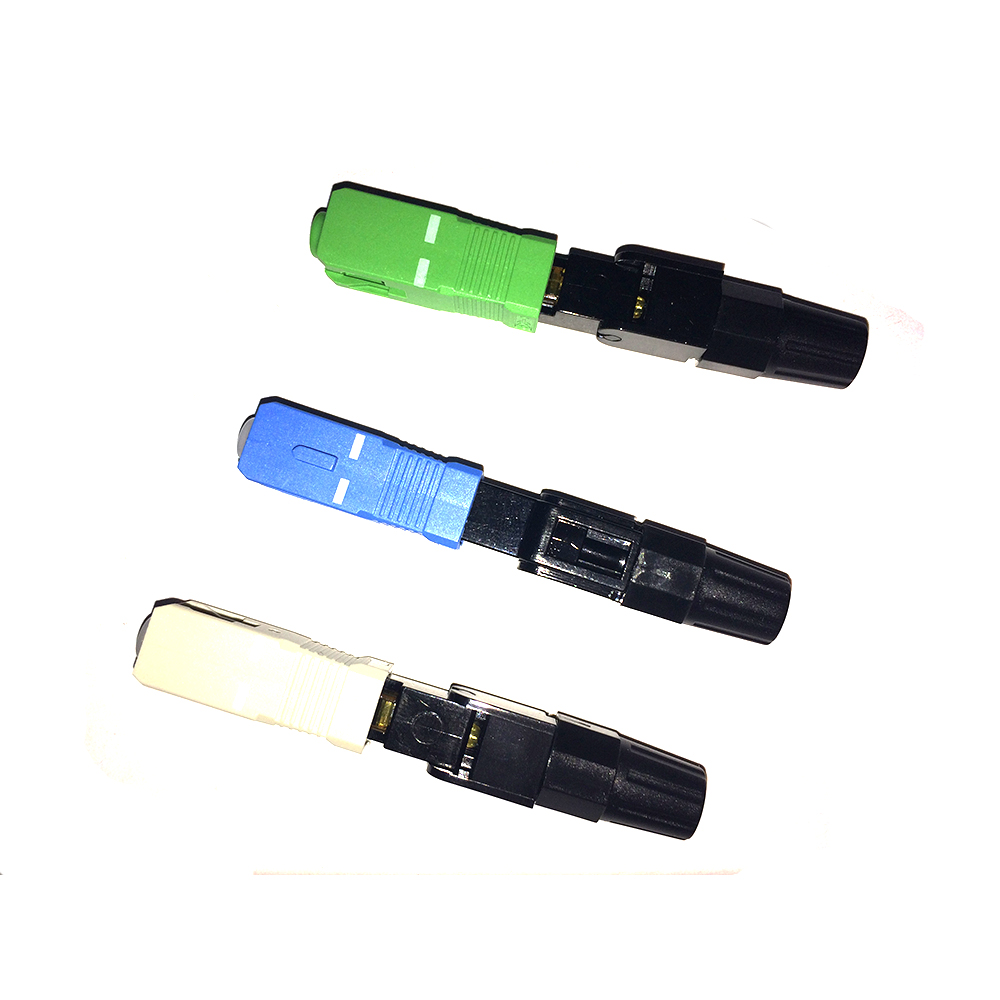

The SC Opitcal Fiber Fast Connector non-preset stub technologies. Precision metallic V-Groove components with co-axial self centering, excellent and durable fixing property. The structure base on unique box-building crimping technology. Preseting the Bending fiber prevent the cable from draging. Integrated protection of the casing to withstand harsh indoor environment. After terminating, both the optical and mechanical performance reach the standard for FTTH.

IMG_7531

Characteristics:

 Good performance and High success rate.

 Easiness in installation with average splicing time of 15 sec

 Special tool is simple and convenient to use.

 Reusable and repeat orperation times are up to 100.

 Integrated protection of the casing to prevent the connector form impact

 On line tension is up to 20N to protect the connector from the draging

 The maxmum tension is up to 100N. It’s the most safety connector

 Storage/Operating Temperature: -40°C to +70°C

Application:

 FTTX/FTTH fiber to the home

 Local area network and smart grid

 Mining and Oil

 Security equipment

Optical Characteristics:

Items



G.652

G.657A

super soft fiber

Insert loss

@1310 nm

/

≤ 0.3dB

≤ 0.25 dB



@1550 nm

/

≤ 0.35 dB

≤ 0.3 dB

Return loss

@1310 nm

/

≤ -40 dB

≤ -45 dB



@1550 nm

/

≤ -40 dB

≤ -45 dB

Environment Parameters

Test Item

Change IL

Change RL

Test condition

Mechanical life

≤ 0.2 dB

≤ 5 dB

500 (times)300/100010D/20D

On line tension

≤ 0.2 dB

≤ 5 dB

20N300/100010D/20D

Impation

≤ 0.2 dB

≤ 5 dB

4m high / 3 axis/ 3times300/100010D/20D

High temperature storage

≤ 0.2 dB

≤ 5 dB

80C / 96(hours)300/100010D/20D

Low temperature storage

≤ 0.2 dB

≤ 5 dB

-40C / 96(hours)

Temperature cycling

≤ 0.2 dB

≤ 5 dB

-40C – 75C / 96(hours)
