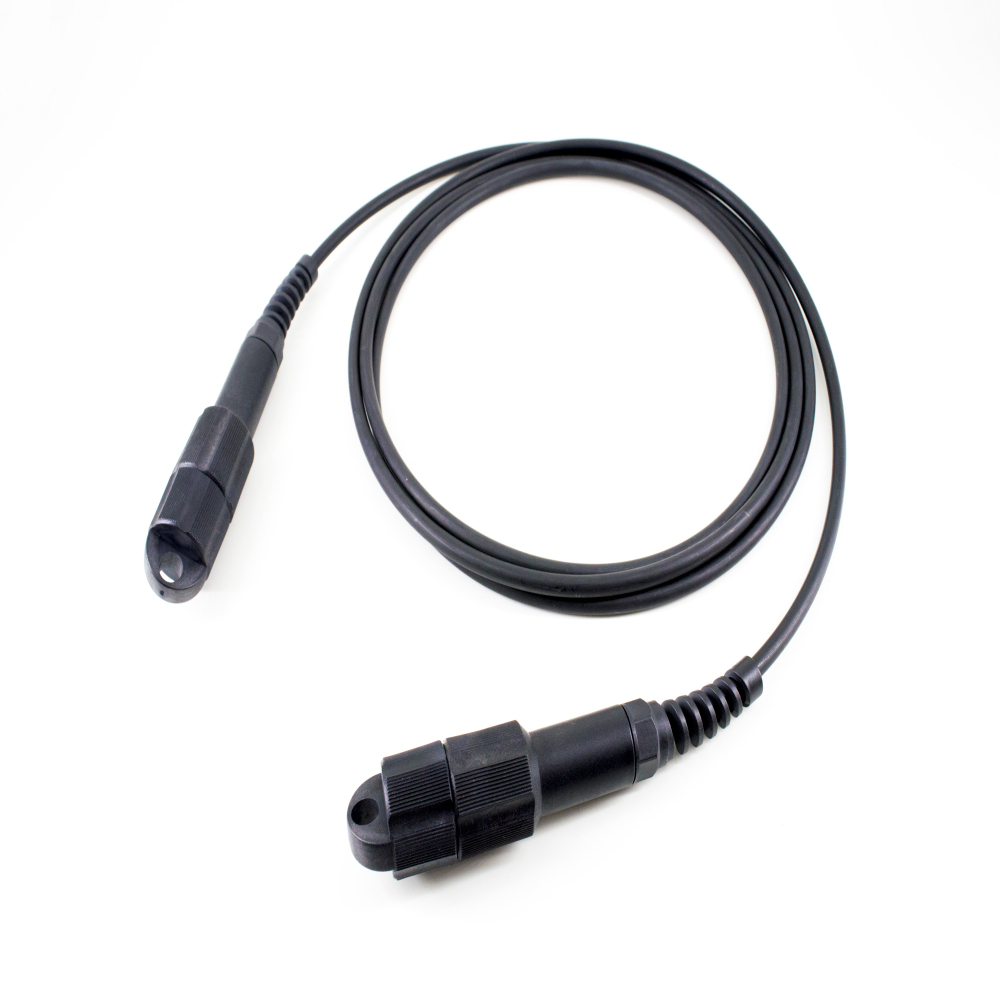

Waterproof Outdoor Armoured Cable Assembly Pdlc-Dlc FTTA Fiber Optic Patch Cord

Product Introduction

PDLC-DLC Waterproof FTTA Fiber Optic Patch Cord With Duplex Lc Connectors and GYFJH Outdoor Cable

PDLC Waterproof  fiber optic patch cord has standard size for Duplex LC Connectors, and he outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof, dustpoof. PDLC fiber patch cord is widely used in FTTA, Base station, and the outdoor waterpoof condition.

 Features:

  • Standard Duplex LC connector, well connected with standard LC adaptor
  • Wall seal design,easy operation, strong and durable.
  • Broad temperature range and wide range of indoor and outdoor cables
  • Easy Operation, reliable and cost-effective Installation
  • IP67 protection, salt-mist proof, humidity proof, dust proof
  • Light weight,waterproof, dustproof, moistureproof , Metal hard housing.

 Applications:

  • Widely used in FTTA & FTTH
  • Used for 3G 4G base station
  • BBU(Base Band Unit), RRU(Radio Remote Unit), RRH, LTE

防水PDLC中兴

PDLC-DLC FTTA Fiber Patch Cord Drawing reference

PDLC 图纸 PDLC 接头图纸



GYFJH Cable

7MM 室外光缆图纸



Different Type Outdoor Patch Cord

ODC,YZC,IP67 patch cord

Performance

Each Cable is custom made in the China by Skilled Technicians (no assembly lines)
The cable is made with Genuine Corning Infinicore 300 glass for superior performance.
Insertion loss testing performed on every assembly. Our strict standards mandate a maximum allowable loss if 0.02 dB (or less)
Each connector is visually inspected with a 400x microscope for any surface or interior cracks, scratches, contaminants or other imperfections.
All cables serialized and test results are recorded
Guaranteed performance specification
The cable is duplex 2.0-7.0mm cable jacket which is the most popular
OFNP Rated for Plenum or Riser use
Connector Specification
ITEM PARAMETER
Connector type PDLC-LC/UPC
Insertion Loss <=0.3db
Return Loss >=50db
IP level IP67
Operating wavelength 1310nm, 1550nm
Test wavelength 1310nm, 1550nm
Repeatability <=0.1
Interchangeability <=0.2dB
Durability <=0.2dB
Fiber Length 1m, 2m….. any length optional.
Length and tolerance 10cm
Operating Temperature -40C ~ +85C
Storage Temperature -40C ~ +85C

Company and Products advantages:

1.The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
2.Good supply capacity(20K-30K pieces connectors each day)
3.Fast delivery time(1-3days)
4.Complied to ISO9001 quality system
5.100% testing before shipment
6.3D passed testing with report for option
7.All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA9,E2000 and so on)
