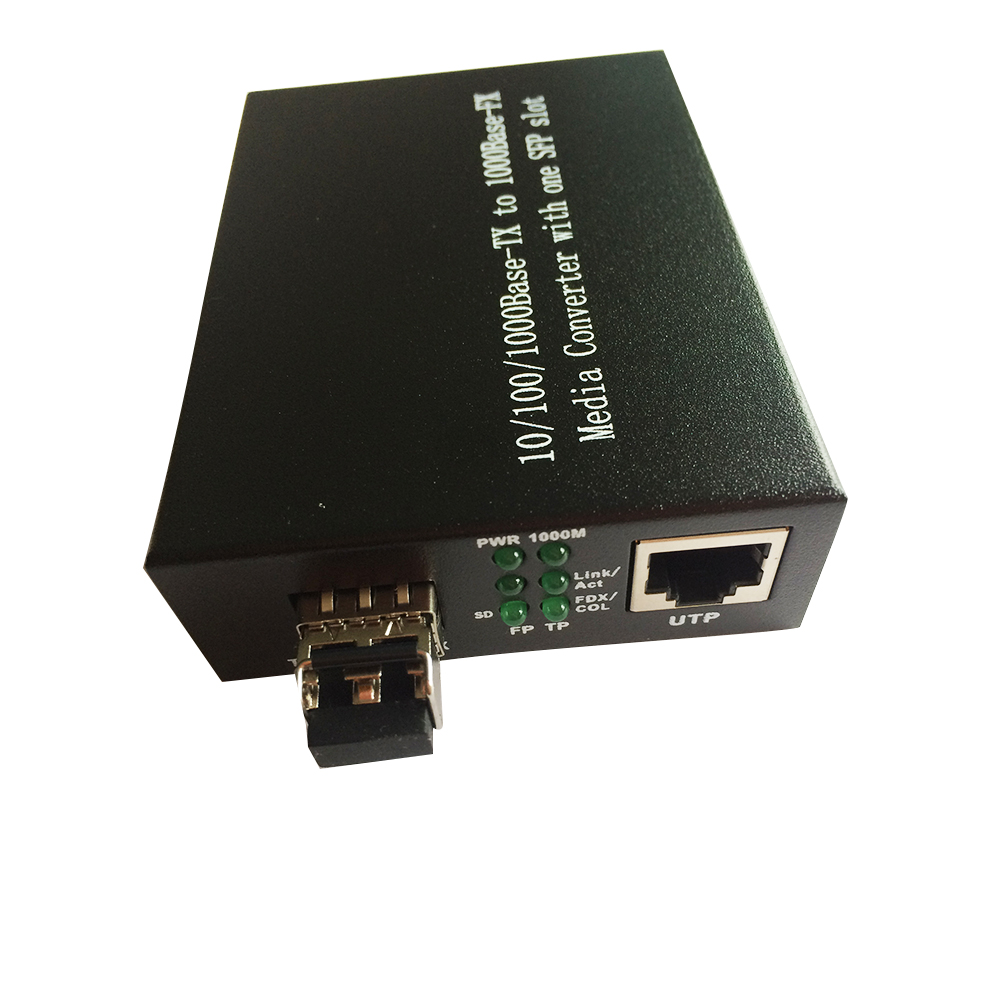

10/100/1000Base-TX to 1000Base-FX Media Converter with one SFP slot

SFP module fiber to ethernet media converter

This series converters are designed to meet the massive needs for Gigabit network deployment and able to extend a copper based Gigabit network via fiber cable to a maximum distance up to 80KM. This series converters are fully compliant with IEEE802.3z & 802.3ab standards. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straightforward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.

Features:
1000Base-T to 1000BASE-SX/LX Converter
Standard : IEEE 802.3z & 802.3ab
Interface: 1 x RJ-45 connector / 1 x SFP Slot
MDI/MDIX Auto-Crossover supported
LED: Power , DUP,FP-LINK,RX,1000,TX
Plug-and-Play installation
Support Jumbo Frame (64-9216 Byte)
Support Voltage Monitor

Benefits of Ethernet to Fiber Optic Converters

  • Protects your investment in existing copper Ethernet-based hardware
  • Provides you with the flexibility to add fiber on a port-by-port basis
  • Enjoy the benefits of fiber without have to make wholesale changes
  • Fast Ethernet or Gigabit Ethernet to multi-mode or single mode
  • Ethernet to fiber and fiber back to Ethernet links
  • Create copper-fiber connections with fiber switches

Application

 * Extend your Ethernet connection up to 0~120km away using fiber optics
 * Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbone
 * Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)
 * Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network

System Design

1.For Networking

收发器插图

 2.For CCTV Surveillance Security

收发器插图 02

Order Information

Part Number Description
TGL12SM-20 10/100M Dual Fiber, 1Fiber and 2RJ45 ports
TGL12SM-20A/B 10/100M Single Fiber, 1Fiber and 2RJ45 ports
TGL14SM-20 10/100M Dual Fiber, 1Fiber and 4RJ45 ports
TGL14SM-20A/B 10/100M Single Fiber, 1Fiber and 4RJ45 ports
TGL23SM-20 10/100M Dual Fiber, 2Fiber and 3RJ45 ports
TGL23SM-20A/B 10/100M Single Fiber, 2Fiber and 3RJ45 ports
TGL82SM-20 10/100M Dual Fiber, 8Fiber and 2RJ45 ports
TGL82SM-20A/B 10/100M Single Fiber, 8Fiber and 2RJ45 ports
TGL12GS-20 10/100/1000M Dual Fiber, 1Fiber and 2RJ45 ports
TGL12GS-20A/B 10/100/1000M Single Fiber, 1Fiber and 2RJ45 ports
TGL14GS-20 10/100/1000M Dual Fiber, 1Fiber and 4RJ45 ports
TGL14GS-20A/B 10/100/1000M Single Fiber, 1Fiber and 4RJ45 ports
TGL18GS-20 10/100/1000M Dual Fiber, 1Fiber and 8RJ45 ports
TGL18GS-20A/B 10/100/1000M Single Fiber, 1Fiber and 8RJ45 ports
TGL22GS-20 10/100/1000M Dual Fiber, 2Fiber and 2RJ45 ports
TGL22GS-20A/B 10/100/1000M Single Fiber, 2Fiber and 2RJ45 ports
TGL24GS-20 10/100/1000M Dual Fiber, 2Fiber and 4RJ45 ports
TGL24GS-20A/B 10/100/1000M Single Fiber, 2Fiber and 4RJ45 ports
TGL28GS-20 10/100/1000M Dual Fiber, 2Fiber and 8RJ45 ports
TGL28GS-20A/B 10/100/1000M Single Fiber, 2Fiber and 8RJ45 ports

Package list

•   Ethernet Switch
•   AC Power Cable
•   Install accessories
•   User manual
•   Warranty card
