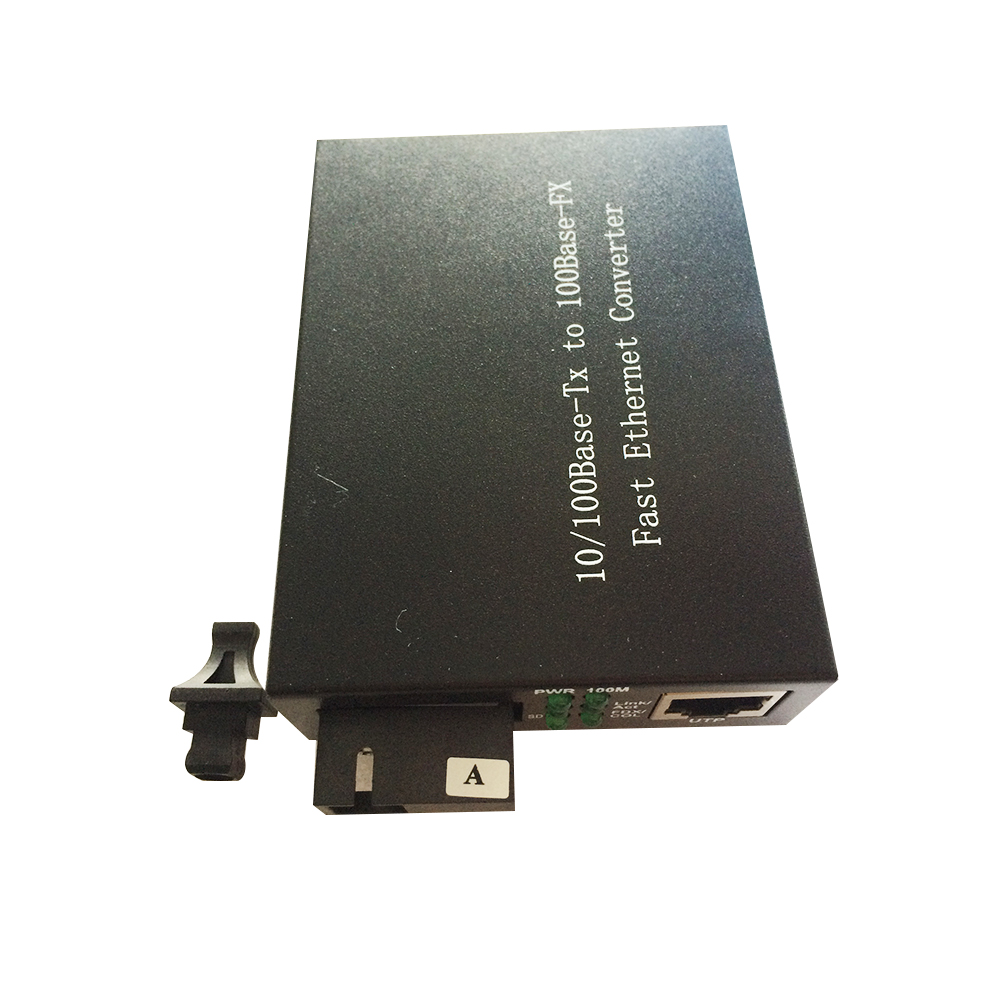

Ethernet to SC port Fiber Media Converter

10/100/1000M Gigabit Ethernet fiber Media converter

Technical Information:

1. Operating standards: IEEE802.3z/AB, 1000Base-T and 1000Base-SX/LX
2. Ambient temperature: 0 ~ +50°C Storage temperature: -20 ~ +70°C Humidity: 5% ~ 90%
3. Connector: UTP: RJ-45,10/100/1000Mbps; Fiber: SC,1000Mbps
4. Cable : UTP cable: Cat 5e or Cat 6 (the max distance up to 100m)
Fiber : singlemode : 8.3/125, 8.7/125, 9/125μm (distance 20-100km)
5. Flow control: Full Duplex: IEEE802.3x Half Duplex: back pressure
6. Power: DC 48V to DC 5V
7. MAC address table: 4K
8. Data Buffer: 256K

10/100/1000M Single fiber
Connector type SC    SC      SC      SC
Fiber type Single-mode Single-mode Single-mode Single-mode
Wavelength 1310/1550nm 1310/1550nm 1310/1550nm 1490/1550nm
Max Distance 20Km 40Km 60Km 80Km
Min TX PWR -10.0dBm -4.0/-8dBm 0/-5.0dBm -1dBm
Max TX PWR -4.0dBm 0dBm 3/0dBm 3dBm
Sensitivity < -22dBm < -25dBm <-25dBm < -25dBm
Link Budget 12.0dBm 20/17dBm 25/20dBm 24.0dBm

10/100/1000M Dual Fiber

10/100/1000M Dual fiber
Connector type SC SC SC SC SC
Fiber type Multi-mode Single-mode Single-mode Single-mode Single-mode
Wavelength 850nm 1310nm 1310nm 1550nm 1550nm
Max Distance 62.5µm: 224m 20Km 40Km 60Km 80Km
50µm: 550m
Min TX PWR -11.0dBm -9.0dBm -4.0dBm -8.0dBm -3.0dBm
Max TX PWR -6.0dBm -5.0dBm 0dBm 0dBm 0dBm
Sensitivity < -18dBm < -21dBm < -24dBm < -25dBm < -25dBm
Link Budget 7.0dBm 12.0dBm 20.0dBm 17.0dBm 22.0dBm

Description

The media converter transform the transmission media of Ethernet signal from CAT5 to optical fiber. it can extend the transmission distance to several kilometer or hundred kilometer.
Using media converter is a economical solution to achieve long distance transmission base on current status.

Overview
This product supports IEEE802.3 10 Base-T standard/IEEE 802.3u 100Base-TX/FX standard/IEEE 802.3z 1000Base-TX/FX standard,as well as full duplex and half duplex mode.

Feature
1. Interface
RJ-45 interface
The transmission media adopts CAT5 twisted-pair with typical length of 100 meter. It features the function of automatically identifying the through line and cross wire Fiber interface
SC/ST fiber interface is of duplex mode type, including two interfaces, namely TX and RX. When the two sets of optical transceiver are interfaced or connected to switch with fiber interface, the fiber is in cross connection, namely “TX-RX”, “RX-TX” (direct butting for single optical fiber).

2. Connection
The network device (work station, hub or switch) with RJ-45 interface is connected to RJ-45 jack of optical transceiver through twisted-pair. And the multi/single mode fiber is connected to SC/ST fiber interface of the optical transceiver. Then switch on. The corresponding LED is on for correct connection. (See the table below for the LED indicator lamp)

Specifications
1. Standard Protocol:
    IEEE802.3 10 Base-T standard
    IEEE 802.3u 100Base-TX/FX standard
    IEEE 802.3z 1000Base-TX/FX standard
2.Connector:oneUTPRJ-45connector,oneSC/STconnector
3. Operation mode: full duplex mode or half duplex mode
4. Power supply parameter:
    outside: 5V DC 2A
    built-in: 110-265V AC  48VDC
5. Environmental temperature:<60,Relative humidity: 5%-90%
8. TP cable: Cat5 UTP cable
9. Transfer fiber:
    multi-mode: 50/125, 62.5/125 or 100/140μm
    single mode:: 8.3/125, 8.7/125, 9/125 or 10/125μm

Benefits of Ethernet to Fiber Optic Converters

  • Protects your investment in existing copper Ethernet-based hardware
  • Provides you with the flexibility to add fiber on a port-by-port basis
  • Enjoy the benefits of fiber without have to make wholesale changes
  • Fast Ethernet or Gigabit Ethernet to multi-mode or single mode
  • Ethernet to fiber and fiber back to Ethernet links
  • Create copper-fiber connections with fiber switches

Application

 * Extend your Ethernet connection up to 0~120km away using fiber optics
 * Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbone
 * Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)
 * Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network

System Design

1.For Networking

收发器插图

 2.For CCTV Surveillance Security

收发器插图 02

Order Information

Part Number Description
TGL12SM-20 10/100M Dual Fiber, 1Fiber and 2RJ45 ports
TGL12SM-20A/B 10/100M Single Fiber, 1Fiber and 2RJ45 ports
TGL14SM-20 10/100M Dual Fiber, 1Fiber and 4RJ45 ports
TGL14SM-20A/B 10/100M Single Fiber, 1Fiber and 4RJ45 ports
TGL23SM-20 10/100M Dual Fiber, 2Fiber and 3RJ45 ports
TGL23SM-20A/B 10/100M Single Fiber, 2Fiber and 3RJ45 ports
TGL82SM-20 10/100M Dual Fiber, 8Fiber and 2RJ45 ports
TGL82SM-20A/B 10/100M Single Fiber, 8Fiber and 2RJ45 ports
TGL12GS-20 10/100/1000M Dual Fiber, 1Fiber and 2RJ45 ports
TGL12GS-20A/B 10/100/1000M Single Fiber, 1Fiber and 2RJ45 ports
TGL14GS-20 10/100/1000M Dual Fiber, 1Fiber and 4RJ45 ports
TGL14GS-20A/B 10/100/1000M Single Fiber, 1Fiber and 4RJ45 ports
TGL18GS-20 10/100/1000M Dual Fiber, 1Fiber and 8RJ45 ports
TGL18GS-20A/B 10/100/1000M Single Fiber, 1Fiber and 8RJ45 ports
TGL22GS-20 10/100/1000M Dual Fiber, 2Fiber and 2RJ45 ports
TGL22GS-20A/B 10/100/1000M Single Fiber, 2Fiber and 2RJ45 ports
TGL24GS-20 10/100/1000M Dual Fiber, 2Fiber and 4RJ45 ports
TGL24GS-20A/B 10/100/1000M Single Fiber, 2Fiber and 4RJ45 ports
TGL28GS-20 10/100/1000M Dual Fiber, 2Fiber and 8RJ45 ports
TGL28GS-20A/B 10/100/1000M Single Fiber, 2Fiber and 8RJ45 ports

Package list

•   Ethernet Switch
•   AC Power Cable
•   Install accessories
•   User manual
•   Warranty card
