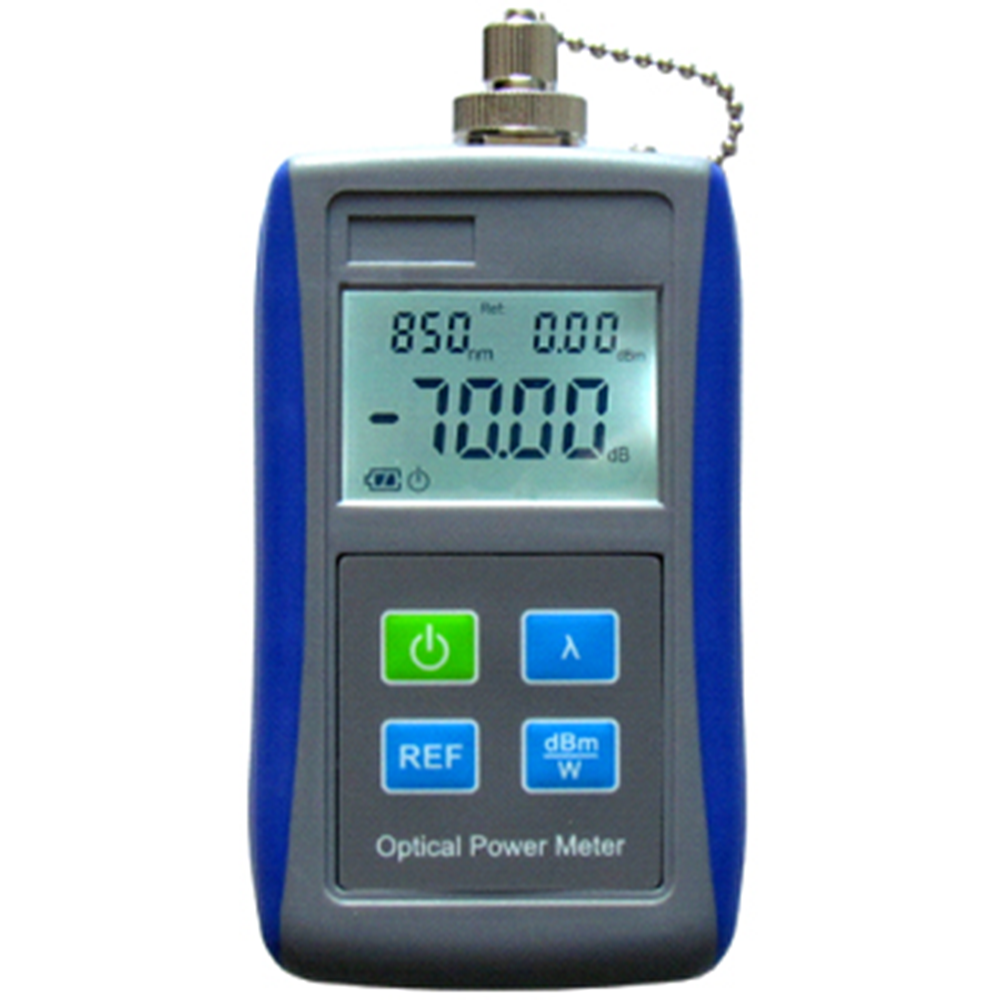

Handheld Optical Power Meter

Handheld Optical Power Meter is 10glink newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers. Compared with usual power meters, it has more great functions/features of automatic wavelength identification and switching and intelligent backlight control. Also the features good appearance, good touch feeling and considerate humanity design.

Features

* Wave ID—Automatic wavelength identification and switching (when used with handheld light source)

* Frequency ID/Tone detection—Automatic frequency identification

*Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)

* Data storage function, up to 1000 test records

* USB communication port for saved testing records download

* Reference power level can be set up and stored

* User self calibration function

* Auto-off function can be activated or deactivated.

* AA alkaline and AC adapter for power supply

* Low battery indication

光功率计

Specifications

Model Optical Power Meter
Calibrated(nm) 850, 1300,1310,1490,1550,1625
Detector type InGaAs
Measurement Range(dBm) -70~+6 -50~+26
Uncertainty (dB) ±0.15(3.5%)
linearity (dB) ±0.02
Display resolution(dB) 0.01
Frequency ID(Hz) 270,330,1K,2K
Wave ID(nm) 1310,1490,1550,1625
Date storage capacity 1000
Communication Port USB
Optical Connector type FC,SC,ST interchangeable
Alkaline battery 3*AA,1.5V
Power Supply Adaptor(V) 8.4
Battery Operating time (h) 200
Operation Temperature(℃) -10~+60
Storage Temperature(℃) -25~+70
Outline size(mm)/weight 180*90*45(250g)

Standard Packages

MODEL INCLUDES
All Models Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case.
