LC 48 Port Fiber Optic Patch Panel 19″ Rack Mounted

Slidable fiber optic patch panel

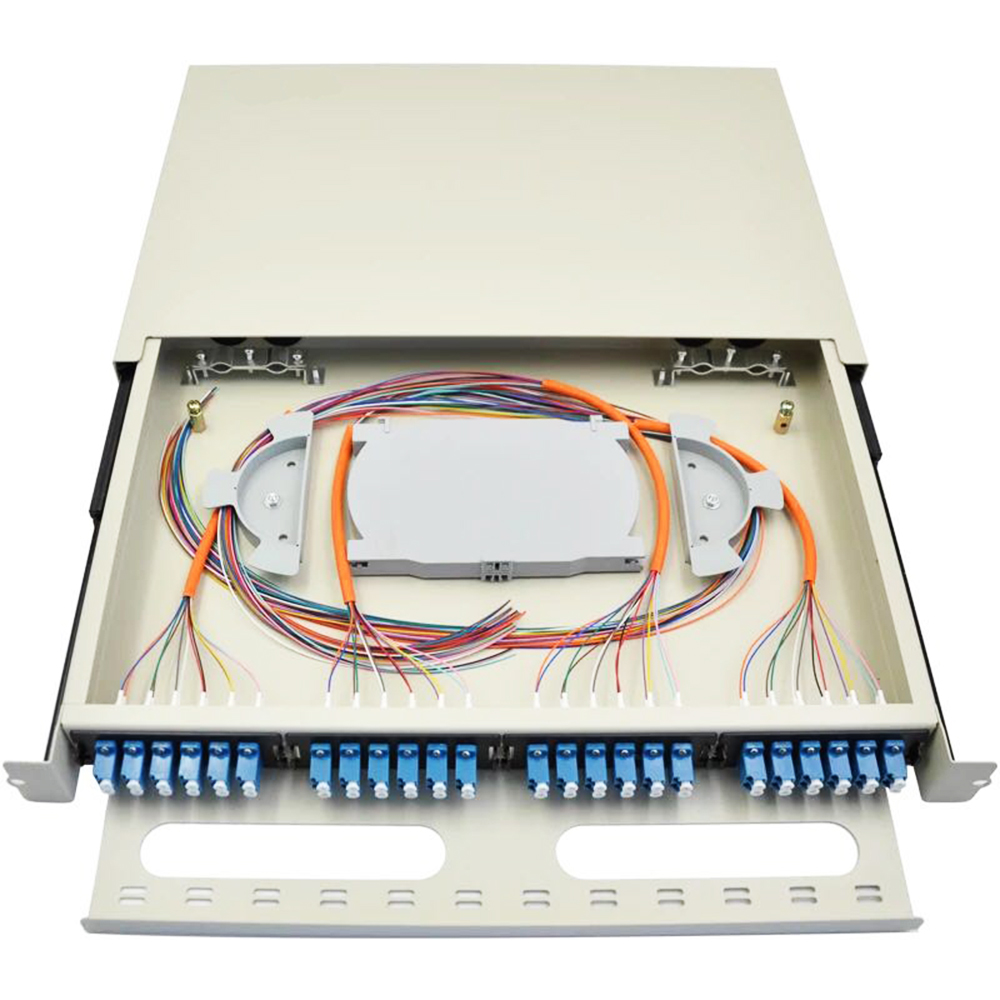

ODF-YZ48 is a 19’’ rack mounted fiber optic patch panel that made of cold-roll steel, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. And it has metal sliding fittings with self-locking functions prevent the drawer from falling when moved.

1U抽拉式熔接型机箱 12 SC SX

1U抽拉式细节图



Features:

Standard size, light weight and reasonable structure

Slide out drawer for easy cable management

FC, SC, ST, LC … adapter patch panel for option, easy to replace.

Front access panel design for easy operation

Suitable for 19’’ standard optic distribution cabinets

Capacity 48 fibers, 1pc splice tray of 12 fibers

4 fiber cable entry ports at rear side

White or black color

Material: Cold-roll steel

Specification:

Model

Capacity

Height

Dimension(mm)

Weight(Kg)

ODF-YZ48

48

2U

435×317.3×88

            5

Application:

Telecommunications

Fiber to the home (FTTH)

LAN / WAN

CATV

Drawings:

48口图纸
