FC Fiber Optic Attenuator

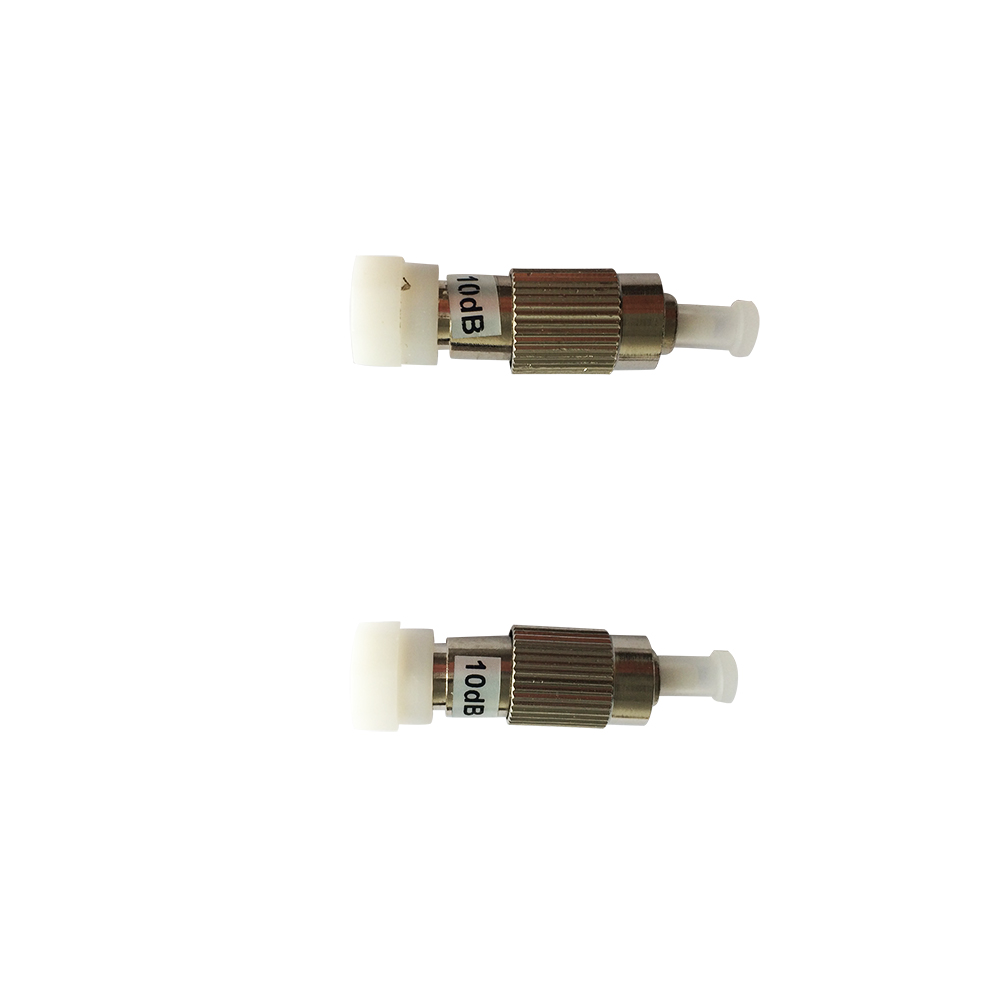

FC Male to Female Optical Fiber Attenuator

Fiber optic attenuator is used for reducing the power of the light in the fiber optic network.
Optic fixed type connector (male to female) attenuator can be selected in need of the project. It is used in the fiber transmission system.

图片1 图片2

Features:

Low back reflection and Low PDL
High precision attenuation value
Precise control of attenuation range
Simple manipulation

Connector type: FC, SC, ST, LC or other type

Material:

Housing Material: Plastic or Metal

Sleeve: Ceramic Zirconia

Application:

Fiber optical telecommunication system
Fiber optical CATV
Fiber optical sensor
Testing equipment

Parameter:

Item

Unit

Parameter

Operating Wavelength

Nm

1310/1550
Attenuation Range

dB

1-10dB(1dB step), 15, 20, 25, 30dB
Return Loss

dB

PC:≥50    UPC: ≥55   APC: ≥60
Attenuation Tolerance

dB

≤1.0 (11-30dB)
Working Temperature

-25℃~+75℃
Storage Temperature

-40℃~+ 85℃

Order Information:
Connector Type: SC, FC, ST, LC or other type
Application: UPC/APC
Wavelength: 1310nm, 1550nm or 1310/1550nm
