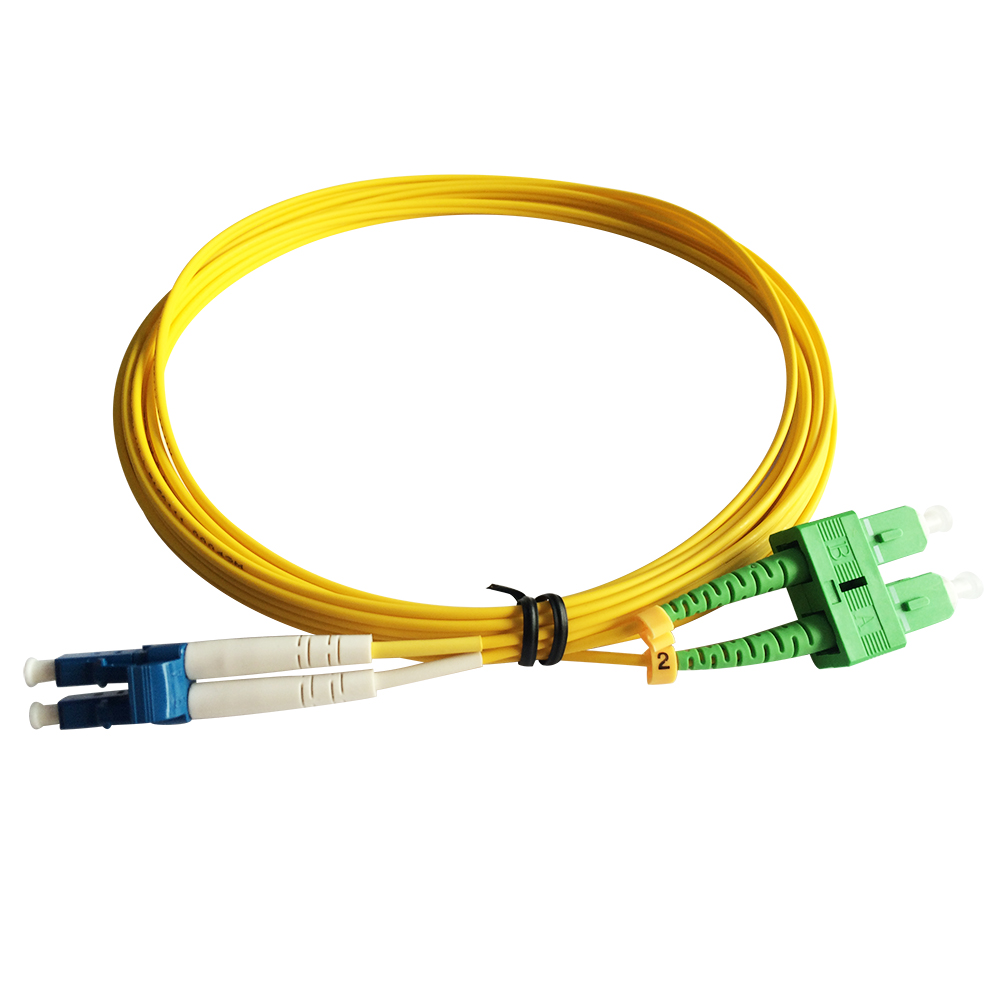

Product Introduction of the Singlemode (9/125) Duplex Fiber Patch Cable LCUPC/SCAPC Connectors
Singlemode (9/125) Duplex Fiber Patch Cable fiber is generally yellow, with a blue connector, and a longer transmission distance. LC/LC Connector design ,LSZH Jacket Cables are classified by the connectors on either end of the cable; some of the most common cable configurations include FC-FC, FC-SC, FC-LC, FC-ST, SC-SC, and SC-ST.The connector’s inserted core cover conforms to APC, UPC, or PC configuration. A UPC inserted core cover is flat and is used in SARFT and early CATV. An APC connector’s inserted core cover is oblique (about 30 °, ±5 °).To reduce the back reflection of a connector,UPC polish. Industry standard is a minimum of–40 dB for PC back reflec-tion measurement and–50 dB for UPC back reflection measurement. If even less back reflection is required, an APC might be necessary. An APC connector has an 8ºangle cut into the ferrule. These connectors are identifiable by their green color. An APC polished connector has an Indus-try Standard Minimum of–60 dB measurement. APC fiber ends have low back reflection even when disconnected.
Product Specification (Parameter) of Singelmode duplex Fiber Patch Cord LCUPC/SCAPC Connectors
Mode
|
Single mode
|
Multimode
|
|
Polish
|
UPC
|
APC
|
PC
|
Insertion Loss
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
Return Loss
|
≥55dB
|
≥60dB
|
≥35dB
|
Test Wavelength
|
1310/1550nm
|
850/1310nm
|
|
Durability(500 Matings)
|
≤0.2dB
|
||
Operating Temperature
|
-20℃~+70℃
|
||
Storage Temperature
|
-40℃~+85℃
|
||
Fire Resistant
|
IEC 60794-2-30
|
||
Standards-Compliant
|
ROHS,IEC and GR-326
|
||
Specification
|
|||
Fiber type
|
Single mode:
|
||
(1)9/125-G652D
|
|||
(2)9/125-G655
|
|||
(3)9/125-G657A,G657A2,G657B2,G657B3
|
|||
Multimode:
|
|||
(4)50/125-OM2
|
|||
(5)62.5/125-OM1
|
|||
(6)50/125-OM3
|
|||
(7)50/125-OM4
|
|||
Fiber brand
|
YOFC, Corning
|
||
Connector type
|
SC, LC, FC, ST, E2000, MU, MTRJ, MPO/MTP, SMA, DIN
|
||
Cord type
|
Simplex, Duplex, 4cores, 6cores, 12cores, 24cores...
|
||
Cable diameter
|
0.9mm, 2.0mm, 3.0mm....
|
||
Cable jacket
|
PVC, LSZH, OFNR, OFNP
|
||
Length(M)
|
0.3m,1m,2m,5m,10m,25m,50m,100m
|
||
Product Application of Fiber Optic Patch Cables
Patch cables are used for connections to CATV (Cable Television), telecommunication networks, computer fiber networks and fiber test equipment. Applications include communication rooms, FTTH (Fiber to The Home), LAN (Local Area Network),FOS (fiber optic sensor), Fiber Optic Communication System, Optical fiber connected and transmitted equipment, Defense combat readiness, etc.
- Gigabit Ethernet
- Computer fiber networks
- Fiber test equipment
- Communication rooms
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment
- Defense combat readiness
- Active device termination
- Telecommunication networks
- Video and Multimedia
- Premise installations
- LAN(Local area networks)
- FTTH (Fiber to The Home) and FTTX applications
- CATV (Cable Television)
- FOS (fiber optic sensor)
Product Features of Fiber Optic Patch Cords ·Low insertion loss ≤0.3dB; ·High return loss,Singlemode UPC≥55dB,APC≥65dB ; ·Good repeatability; ·Good interchange; ·Excellent environmental adaptability； ·Precise connector ·Excellent mechanical capability ·Fiber optic connector accord with ISO9001,ROHS,CE
| Connector options include: | Epoxy | ||
| —— LC/UPC | —— SC/APC | Temperature coefficient | 120tg |
| Performance | Curing method | Outgassed | |
| Insertion Loss: | ＜0.3dB typical(UPC) | Residual epoxy | Not specified |
| Return Loss: | ＞55dB typical(UPC) | Configuration Control | |
| ＞65dB typical(APC) | Data tracking | IL and RL data printed on each cable | |
| Geometry | Cable Type options include: | ||
| Radius of curvature | 7-25mm | Single mode(9/125) Options available | |
| Apex offset | 0-50um | Simplex and Duplex cables available | |
| Radial fiber height | -50 to +50nm | —— Riser | —— Plenum |
| Angular offset | ＜0.3degrees | —— Low smoke/zero halogen | —— Bend-insensitive |
| Fiber roughness | 0-25nm | Cable outer jacket diameter options include: | |
| Ferrule roughness | 0-50um | —— 900um | —— 1.6mm |
| Fiber core | 0n㎡ | —— 2.0mm | —— 3.0mm |
Company and Products advantages:
1.The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
2.Good supply capacity(20K-30K pieces connectors each day)
3.Fast delivery time(1-3days)
4.Complied to ISO9001 quality system
5.100% testing before shipment
6.3D passed testing with report for option
7.All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA9 and so on)
