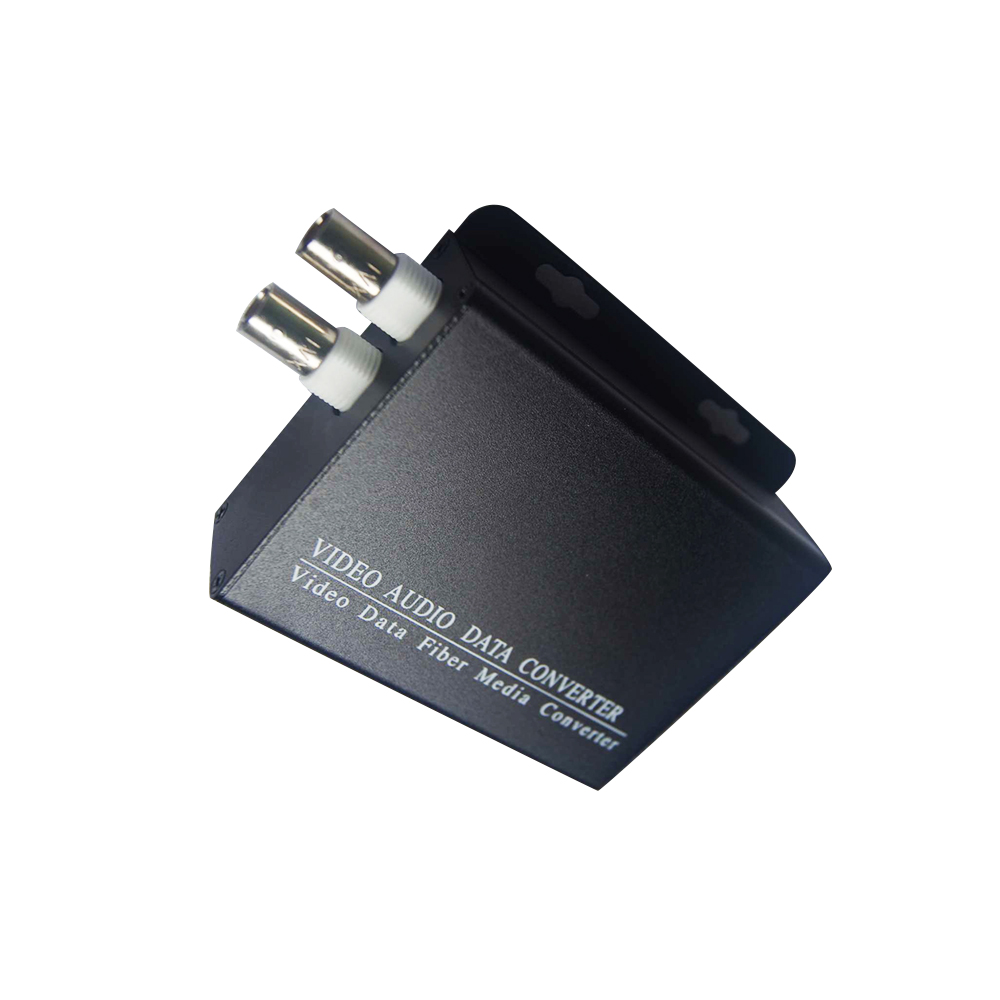

Video Date Fiber Media Converter

2 Channel Video/Data Digital Optical Converter

DESCRIPTION

Digital fiber optic video transceivers can simultaneously transmit 1-128 channels of 8-bit or 10-bit digitally encoded video/return or bidirectional data/unidirectional or bidirectional audio/Ethernet/Telephone/Binary input/output over one multimode or single-mode optical fiber. These multiplexers are typically used in applications where the cameras have P/T/Z capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment.

FEATURES

8-bit or 10-bit digitally encoded and non-compression video transmission
Directly compatible with NTSC, PAL and SECAM CCTV camera systems and support RS-232, RS-422 and RS-482 data protocols
Power supply and other parameter state indication, which can monitor the operation condition of system
Support no-damage regenerative trunk of video
Constant input optical power, and large dynamic range, no electrical or optical adjustments required.
Special ASIC design
Industry-grade of operating temperature from 10 to 75, which is applied to the different working environment
Hot-swap function
Stand-alone type or card-type installed in 19" 2U or 4U rack-mount chassis.
Optical interface: FC, ST, SC(optional)
Abundant signal interface, such as video, data, audio, telephone, Ethernet, binary input/output and talkback

APPLICATION
City traffic monitoring system
Police and safe city monitoring system
High way security protection and toll station system
Building and campus monitoring system
Industrial monitoring(airport, chemical plant, steel, oil, railway, irrigation works, mine and so on)
Military monitoring(storage, frontier defense, guard, national defense and so on)
Electronic power oil field, TV station program broadcasting system
Gymnasium (live video and audio transmission)
vedio 光端机插图

Dimension:
vedio 插图2

TECHINCAL SPECIFICATIONS

Video

Port 2
Video interface BNC
Video in/output impedance 75Ω
Video in/output voltage (typical)1.0Vp-p/max 1.5Vp-p
Bandwidth 5-8MHz
Differential gain <1% (typical)
Differential phase <0.6°
SNR ≥68dB
Field tile <0.5%

Data

Physical connector phoenix contact (DATA)
Data connector RS-485/422,RS232
Channels of data forward and reverse path data multi-channels
Interface port Industrial standard interface port

Environment

Working temperature -30 ℃ ~ +75 ℃
Storage temperature -40 ℃ ~ +85 ℃
Relative humidity 0~95%

Optical

Fiber type MM SM SM SM
Budget 20dBm 20dBm 22dBm 25dBm
Transmission Distance 2km 20km 40km 60km

Other

Dimension 143 mm x 107mm x 28mm
Input rating voltage AC220V/50Hz
Power supply DC 5V/1A
Power ≤5W
Sampling rate 15MHZ
MTBF ≥100,000h
Emission/Safety FCCPart15, ClassA, RoHS and CE Mark
