Fiber Cable Joint Box

1. Product Specification

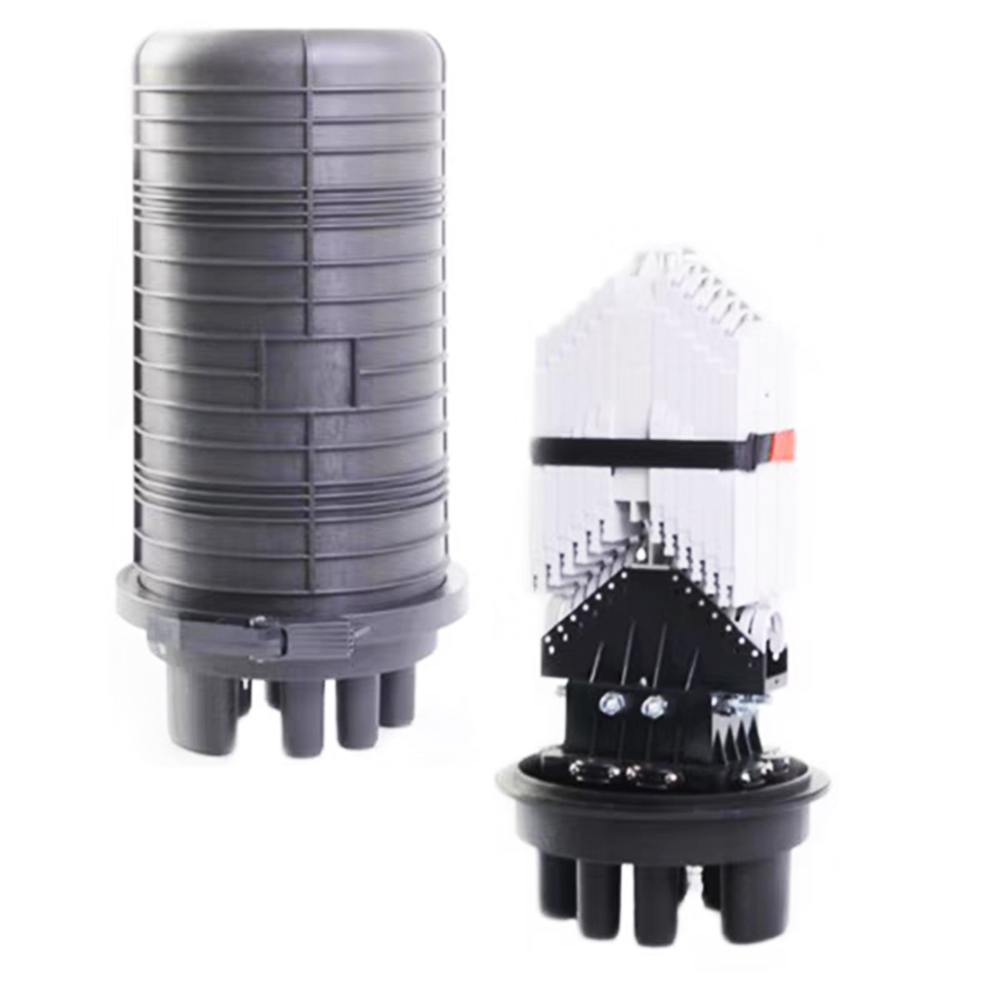

The Dome Fiber Optic Splice Closure is used in aerial, wall-mounting applications, for the straight-through and branching splice of the fiber cable. The closure has four round entrance ports. The shell of the product is made from ABS. The shell and the base are sealed by pressing the silicone rubber with clamp allocated. The entry ports are sealed by thread plastic device. The closures can be opened again after be sealed, reused again without changing the sealing material.

2. Application:

pole-mounting

Wall-mounting


3. Kit Contents

Item Type Quantity
Fiber Optic Splice Sleeve   Allocated by the number of fibers
Buffer Tube PVC Allocated by the trays(According to the clients need)
Nylon Ties   4×trays
Marking Note   4×cores of fiber cable
Hanging Tools   1 pair
Plastic hoop   1 piece
Plastic wrench   2 small and 1 big
Seal ring   1 piece
Sand paper   1 piece
aluminum paper   1 piece

Ⅱ、Tools Required

(1) Blast Burner or Welding Gun

(2) Saw

(3) Minus Screwdriver

(4) Cross-shaped Screwdriver

(5) Pliers

(6) Scrubber

Ⅲ.Display of the Serial Assemblies and Tools Needed

1. Serial Assemblies

FEZS0BQWB3KW0_2(QA3VF7C

2. Self-prepared Installation Tools

0YYODR`O_PBSX}8AQ(3BFSG

Ⅴ、Transportation and Storage

(1) The package of this product adapts to any transportation ways. Avoid collision, drop, direct shower of rain & snow and insolation.

(2)Keep the product in a draughty and dry store, without

   corrosive gas in.

(3)Storage Temperature Range -40 ~ +60
