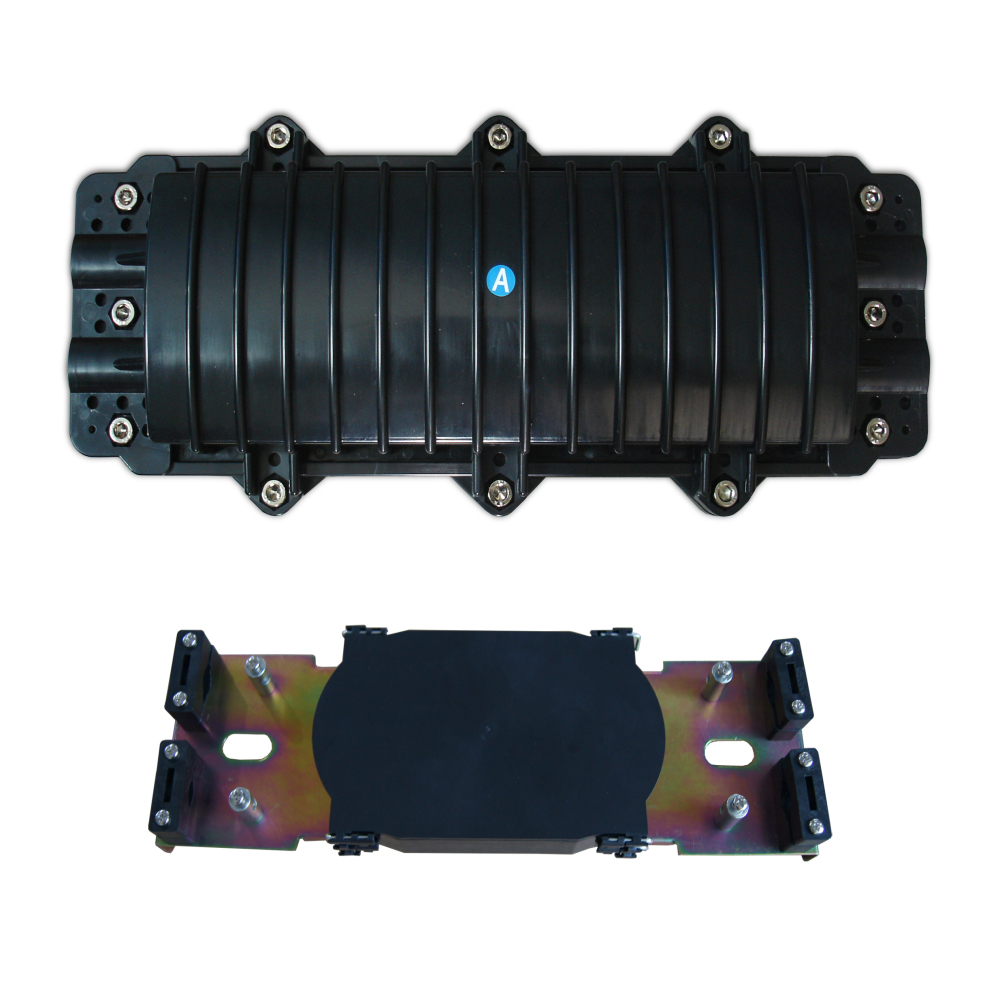

Horizontal Fiber Optic Splice Closure

Description:

Horizontal Fiber Optic Splice Closure has 4 fiber cable in-out round ports for the cable diameter Ф7-Ф18mm. It is widely applied to the splicing and distributing variable optical cables. It is made of the material ABS and with the mechanical sealing structure filled with the sealing material. The external component and fastening piece are all made of the high-quality steel. It can be opened after sealing.

Application: Wall mounted, Aerial hanged

 插图插图01

Specification:

Dimension

424×175.8×106 mm

Weight

2.6 kg

Cable diameter(mm)

Ф7-Ф18 mm

Cable entry ports

2 in & 2 out

Max. Capacity of fiber splice tray

5pcs (12core/tray, 24core/tray duplex)

Max. Capacity

120 fibers



Accessories:

Splice protector sleeve

Silicon gum material

Sealing washer

Allen wrench

Insulated rubber belt

Aerial mounted accessories
