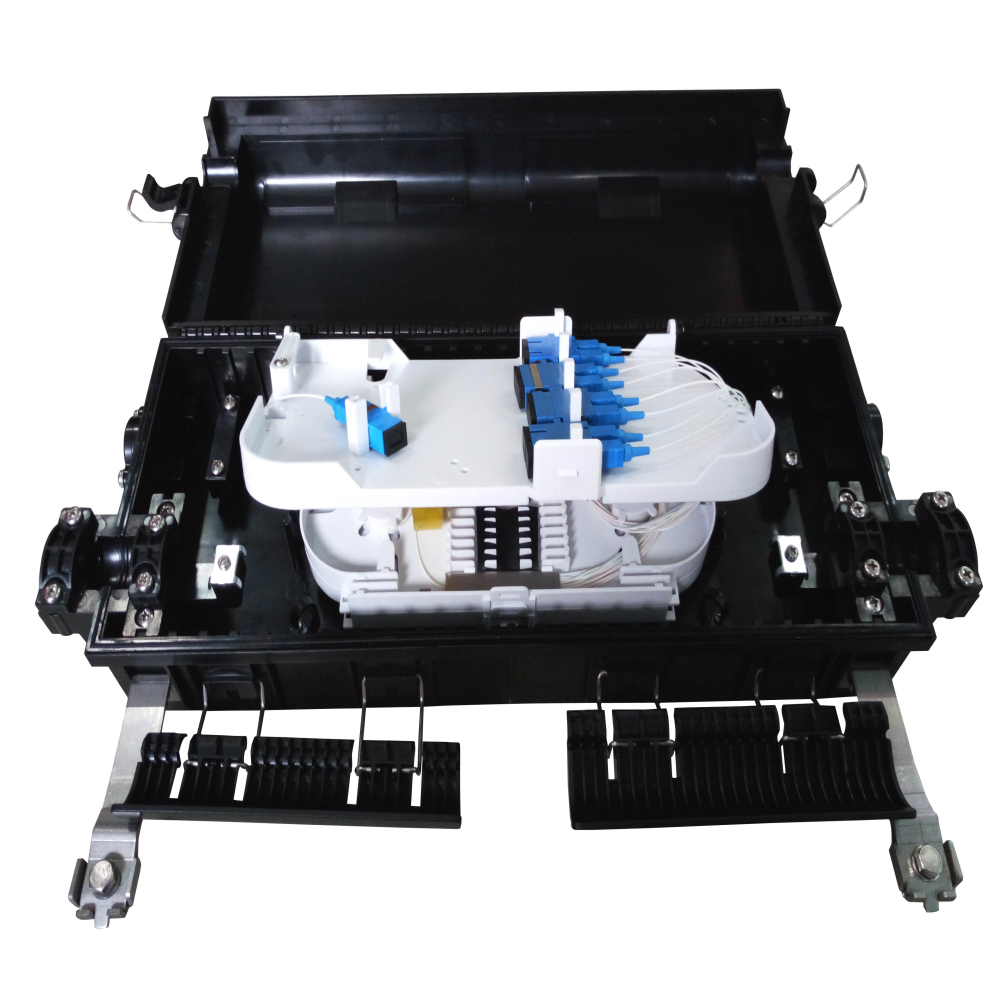

Horizontal Fiber Optic Splice Closure

Description:

Horizontal Fiber Optic Splice Closure is made of high-quality ABS material. Its cover and bottom is sealing by silicone material, the hook closing design is convenient for installation and maintenance. This closure box is applied to splice fiber without cutting cable. There is a rotary plate in box for patching. It also can load PLC splitter.

CH016 插图 CH 016 插图02



1.Product Features:

1)Both side have a cable hole applied toφ8~φ14 cable in and out without cutting.
2)It load 2 pcs 24 cores splice tray (OST-010G),max capacity is 48cores
3)Both side have a hole for FTTH cable, it can load 16pcs 2*3mm cable or 8pcs 3*3mm cable
4)It can load 1pc SC 1*8 PLC splitter or SC 1*16 PLC splitter in splice tray.
5)Aerial-hanger, IP65
6)Box body use ABS material.Light weight,compact structure.

2.Dimension :

 CH016



3.Cable arrangement:

CABLE manage

4.Standard Accessories

Material

Qty

Material

Qty

Ring rubber gasket Φ10 black

2pcs

Ring rubber gasketΦ14 black

2pcs

Dummy Plug

1pcs

Cable tie pusher

1pcs

Additional Cable Support

2pcs

Abrasive strip 140*25mm

1pcs

Spiral wrap Φ3*400mm

1pcs

Spiral wrap Φ3*60mm

1pcs

Sealing grease

1pcs

Glue

1pcs

Cleaning tissue

1pcs

Sealing tape

1pcs

Circumference measuring tape

1pcs

Nylon cable tie 3*80mm white

9pcs

Nylon cable tie 3*80mm black

32pcs

Protective sleeve 3*60mm

16pcs

5.Selected Accessories :

Material

Qty

Remark

PLC splitter 1*8-SC/UPC

1pcs

Selected

PLC splitter 1*16-SC/UPC

1pcs

Selected

Fiber optic adapter SC/UPC/SX

17pcs

Selected

Fiber optic adapter SC/UPC/DX

8pcs

Selected

Fiber optic pigtail SC/UPC/0.9mm/1.5M

17pcs

Selected

Fiber optic fast connector SC/UPC

17pcs

Selected

6.Packing info:

Carton size

Goss weight

Qty/Carton

56*51*47cm

20kg

8sets
