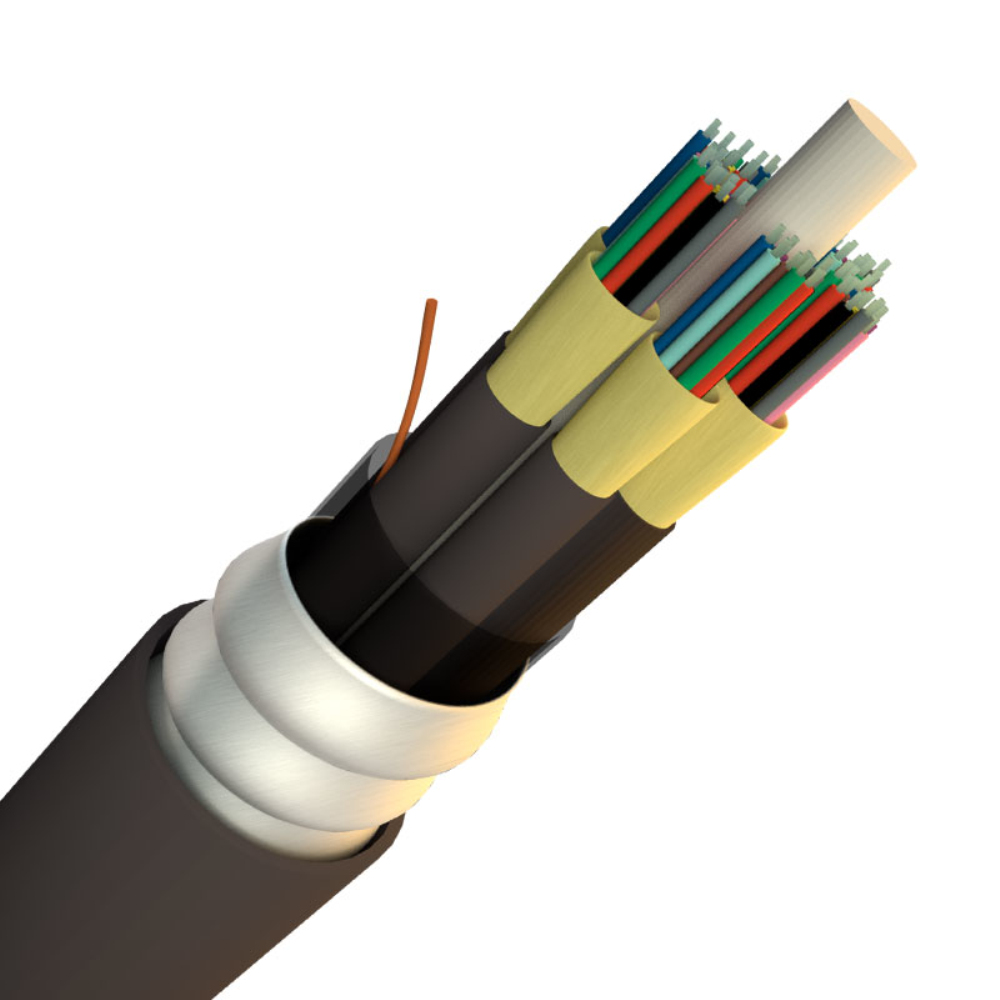

Indoor/Outdoor Armored Tight Buffered fiber cable

Indoor/Outdoor Armored Tight Buffered fiber cable

Characteristics:

l Small cable diameter(adapt for bad climate), light weight, 100m span, low attached load on tower.

l Metal structure, good insulation, anti-thunder.

l Fine production technology, even force for aramid yarn, with superior stress flexibility.

Application:

l Erect on the same pole with power line in new and old power line.

l Areas of strong electric field,

l anti-thunder, etc.

l Long span communication system.

Technical Parameters:

Construction of optical fiber cable.

Items

Description

Number of fiber 6 12 48
Number of loose tube 1 1 4
Number of fibers per tube 6 12 12
Number of fillers 5 5 2
Jacket HDPE HDPE HDPE
Color of Jacket Black Black Black
PE out sheath thickness 1.8±0.2mm 1.8±0.2mm 1.8±0.2mm
Loose tube diameter 2.2±0.1mm 2.2±0.1mm 2.2±0.1mm



FRP strength member diameter 2.2mm 2.2mm 2.2mm
RTS(KN) 8 8 8
MAT(KN) 3 3 3
EDS(KN) 1.2 1.2 1.2
Cable diameter 10.7±0.2mm 10.7±0.2mm 10.7±0.2mm
Approx. weight cable Kg/Km 90 90 90



Mechanical and environmental data:

Temperature range Storage/Shipping temperature rangeOperating temperature range -40℃ ~ +70℃
Min. Bending Radius(mm) Dynamic mm 20D
Static mm 10D
Max. Crushing Resistance (N/100mm²) Short-term N/100mm² 4000
Long-term N/100mm² 1000
