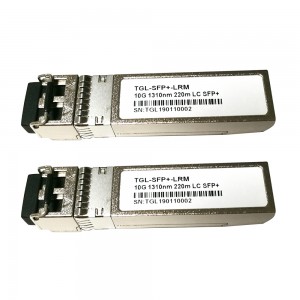

TGL-SFP+-LRM 10Gbps 220m SFP+ Transceiver Features * Supports 9.95 to 10.3Gbps bit rates * Transmission distance up to 220m (OM1 fiber) * Hot Pluggable SFP+ footprint * 1310nm FP transmitter, PIN photo-detector * Digital Status monitoring Interface * Duplex LC connector * RoHS compliant and Lead Free * Metal enclosure for lower EMI * Single 3.3V power… Continue reading Compatible Module Transceptor SFP+ 10GBASE-LRM Fibra Optica – LC Duplex, 10 Gigabit Ethernet, Multimode, 220m, 1310nm
Category: Transceivers

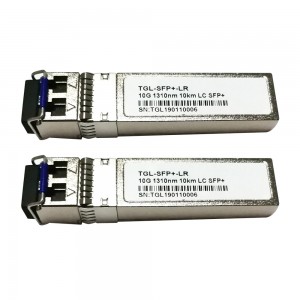

High Quality 10G Sfp+ LR Fiber Transceiver Module Manufacturers,Singlemode, 10km, 1310nm
TGL-SFP+-LR 10Gbps SFP+ Transceiver, 10km Reach Features *Optical interface compliant to IEEE 802.3ae 10GBASE-LR *Electrical interface compliant to SFF-8431 *Hot Pluggable *1310nm DFB transmitter, PIN photo-detector *Operating case temperature: 0 to 70 °C *Low power consumption *Applicable for 10km/20km SMF connection *All-metal housing for superior EMI performance *Advanced firmware allow customer system encryption information to be… Continue reading High Quality 10G Sfp+ LR Fiber Transceiver Module Manufacturers,Singlemode, 10km, 1310nm

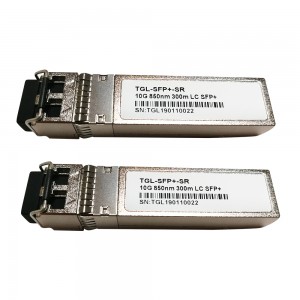

Compatible Module Transceptor SFP+ 10GBASE-SR Fibra Optica – LC Duplex, 10 Gigabit Ethernet, Multimode, 300m, 850nm
TGL–SFP+-SR 10Gbps SFP+ Transceiver, 300m Reach Features *Optical interface compliant to IEEE 802.3ae 10GBASE-SR *Electrical interface compliant to SFF-8431 *Hot Pluggable *850nm VCSEL transmitter, PIN photo-detector *Maximum link length of 300m on 2000MHz/km MMF *Operating case temperature: 0 to 70℃ *Low power consumption *All-metal housing for superior EMI performance *Advanced firmware allow customer system encryption… Continue reading Compatible Module Transceptor SFP+ 10GBASE-SR Fibra Optica – LC Duplex, 10 Gigabit Ethernet, Multimode, 300m, 850nm
1.25G BIDI SFP 20km with LC connector TX1310nm/RX1490nm
1.25Gbps SFP Optical Transceiver 20KM Reach Features Ø Data-rate of 1.25Gbps operation Ø 1310nm FP laser and PIN photodetector for 20KM transmission Ø Compliant with SFP MSA and SFF-8472 with duplex LC receptacle Ø Digital Diagnostic Monitoring: Internal Calibration or External Calibration Ø Compatible with SONET OC-24-LR-1 Ø Compatible with RoHS Ø +3.3V single power supply Ø Operating case temperature: Standard : 0… Continue reading 1.25G BIDI SFP 20km with LC connector TX1310nm/RX1490nm

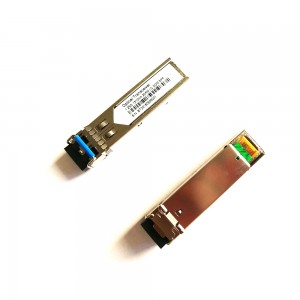

1.25G 1310nm 10km SM DDM SFP Fiber Optic Transceiver
TGL3112L-CD10 Cisco GLC-LH-SM Compatible 1.25Gbps SFP Optical Transceiver, 10KM Reach Features Ø Data-rate of 1.25Gbps operation Ø 1310nm FP laser and PIN photodetector for 10KM transmission Ø Compliant with SFP MSA and SFF-8472 with duplex LC receptacle Ø Digital Diagnostic Monitoring: Internal Calibration or External Calibration Ø Compatible with SONET OC-24-LR-1 Ø Compatible with RoHS Ø +3.3V single power supply Ø Operating case temperature:… Continue reading 1.25G 1310nm 10km SM DDM SFP Fiber Optic Transceiver

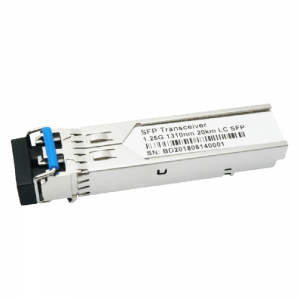

Optical Transceiver 1.25g 20km 1310nm LC DDM Sfp Module
TGL3112L-CD20 Cisco GLC-LH-SM Compatible 1.25Gbps SFP Optical Transceiver, 20KM Reach Features Ø Data-rate of 1.25Gbps operation Ø 1310nm FP laser and PIN photodetector for 20KM transmission Ø Compliant with SFP MSA and SFF-8472 with duplex LC receptacle Ø Digital Diagnostic Monitoring: Internal Calibration or External Calibration Ø Compatible with SONET OC-24-LR-1 Ø Compatible with RoHS Ø +3.3V single power supply Ø Operating case temperature:… Continue reading Optical Transceiver 1.25g 20km 1310nm LC DDM Sfp Module
